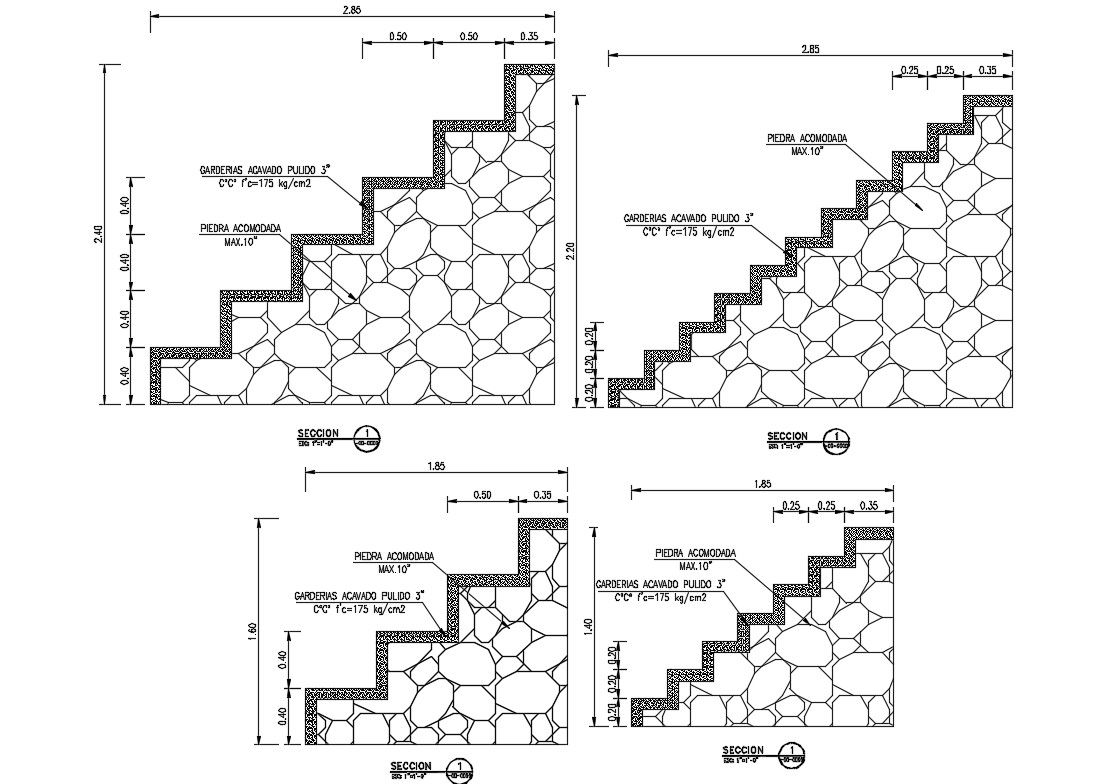

Staircases of sports ground section and construction details dwg file


Description

Staircases of sports ground section and construction details that includes a detailed view of staircase vest scenario, ceramic floor, horizontal section, tapizon novoflor corrugated beige, ceramic floor celima color blanco, foot print ceramic, novice glue, steps details, supportive wooden railing installation, base floor concrete plan, wall construction and much more of staircase details.




File Type: DWG File ID: 62930

Uploaded by:


Vaishali
India
