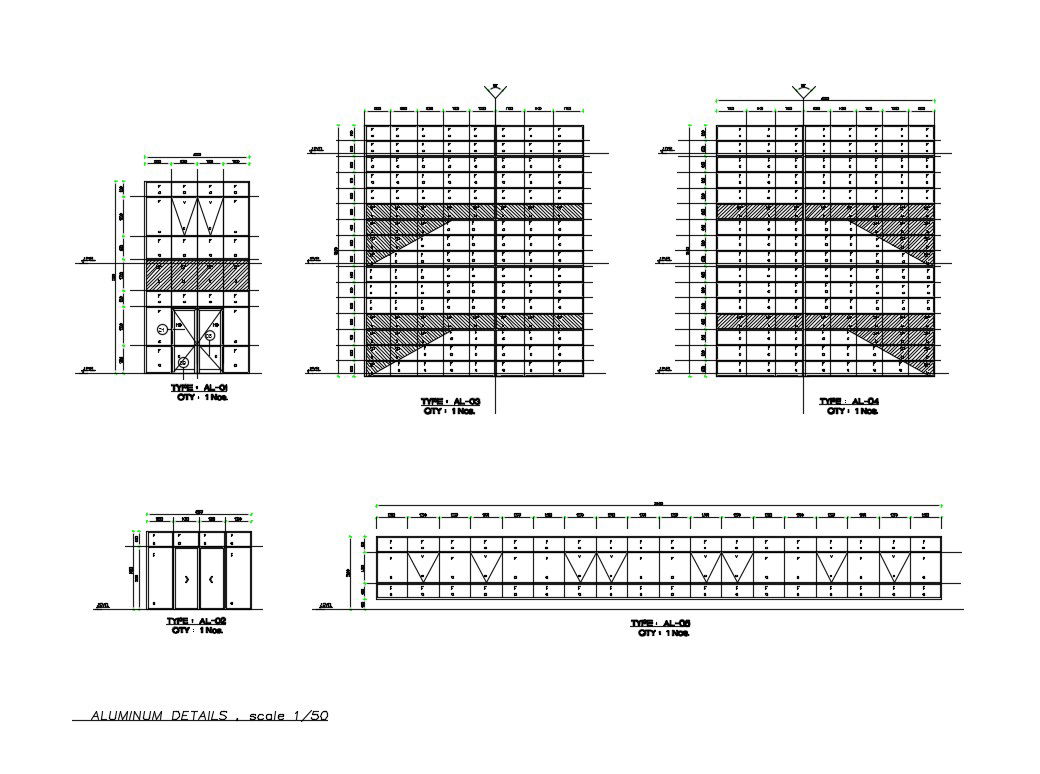

Aluminium doors and cupboards auto-cad details dwg file


Description

Aluminium doors and cupboards auto-cad details that includes a detailed view of doors elevation details, cupboards details, wires and fences, galvanized mesh, clamps galv, aluminum couplings, amarres galv, rh place 1 into the spot and 2 in the corners, pe as reinforcement in straight sections, technical specifications, model selection, symbology details, dimensions details, joints details and much more of door installation details.




File Type: DWG File ID: 63188

Uploaded by:


Vaishali
India
