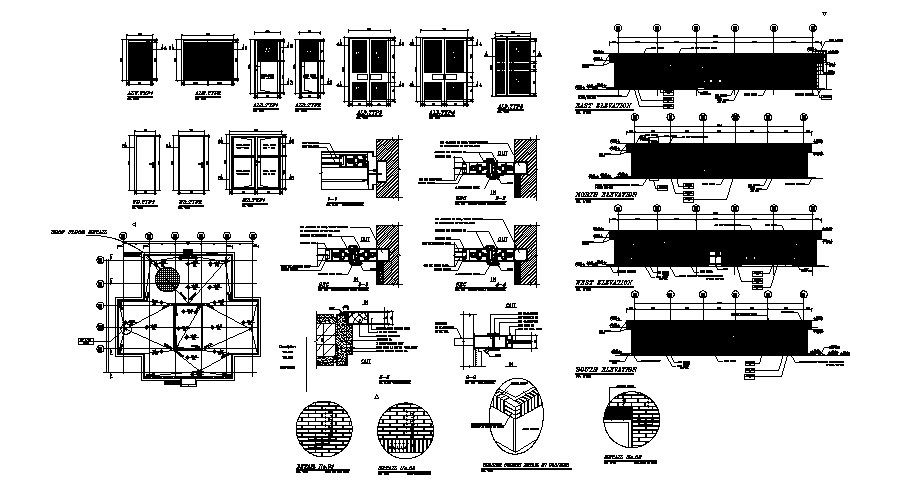

Doors and windows elevation and installation details of office building dwg file

Description:

Doors and windows elevation and installation details of office building that includes a detailed view of door elevation, window elevation, welded plate for grappling the clamp, door elevation details, door section details, double swing handle (with placement accessories), reinforcement rib, expanded metal, ceramic block, ceramic, block, lintel 2 irons, wood cap, frame and much more of door and window installation details



Category : Furniture
Sub category : Door and window
File Type : Autocad
File ID : 63595
Type : Gold
Size : 3239.07 KB
Publisher
Vaishali
