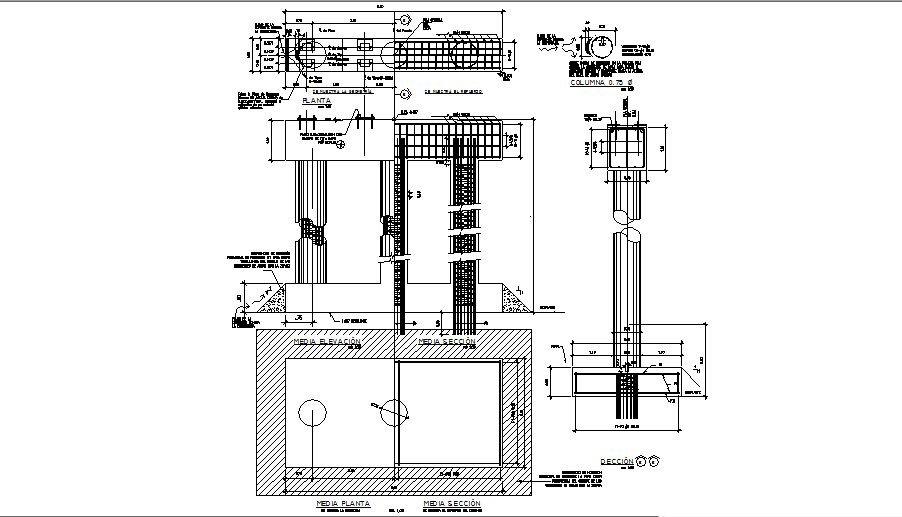

Pilaster vehicular bridge detailed architecture project dwg file


Description

Pilaster vehicular bridge detailed architecture project that includes a detailed view of detail of the remate (above alero), parapet detail, detail of the parapet and the garnish, reinforced concrete posts, galvanized steel sheet defense, detail of the garnish, detail of the board, lid detail, list of rods, generalities details, dimensions details, specifications details,materials details, welding, concrete details, reinforcing steel, construction procedures, parapet, pilaster, garrison, elevation and section details and much more of bridge details.




File Type: DWG File ID: 63790

Uploaded by:


Vaishali
India
