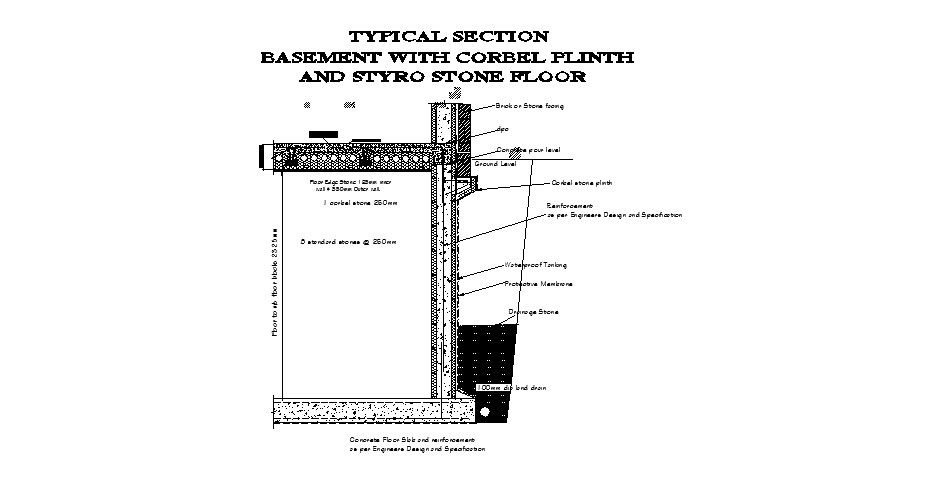

Typical section basement with carbel plinth and stone floor dwg file

Description:

Typical section basement with carbel plinth and stone floor that includes a detailed view of flooring view, wall construction, memory of materials, footings details, column view, beam construction, covers closure type, soil burried wall closure , exterior solera, holes, interior partition, granite veneer of the country with steel supports, halfeneisen type, Brick partition, plaster plastering, Concrete wall and much more of section details.



Category : Structure detail
Sub category : Section plan
File Type : Autocad
File ID : 63926
Type : Free
Size : 187.38 KB
Publisher
Vaishali

Download Add to Library
