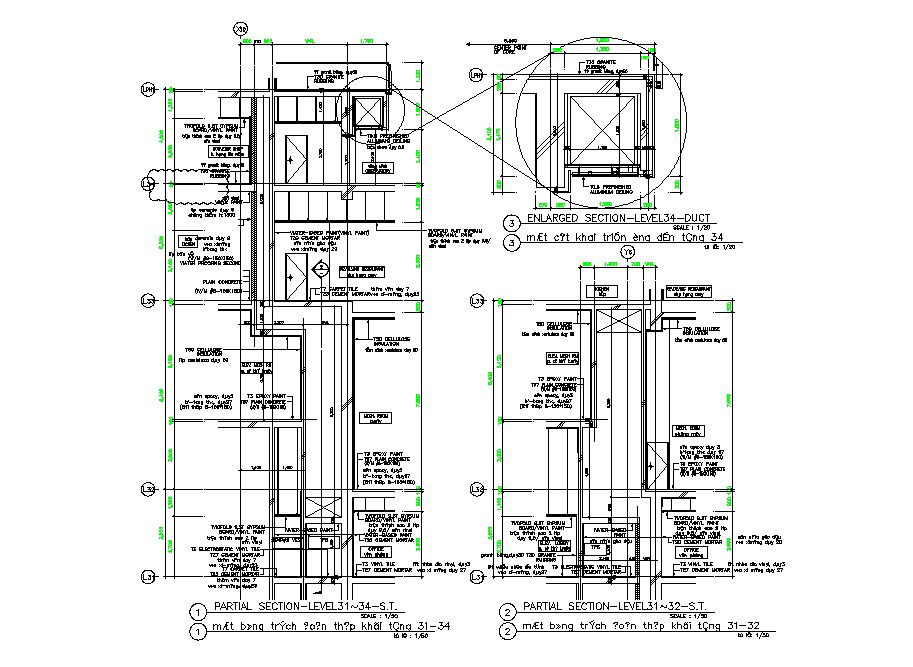

Partial constructive sectional details of multi-story building dwg file

Description:

Partial constructive sectional details of multi-story building that includes a detailed view of flooring view, wall construction, memory of materials, footings details, column view, beam construction, covers closure type, soil burried wall closure , exterior solera, holes, interior partition, granite veneer of the country with steel supports, halfeneisen type, Brick partition, plaster plastering, Concrete wall and much more of section details.



Category : Structure detail
Sub category : Section plan
File Type : Autocad
File ID : 63962
Type : Gold
Size : 429.03 KB
Publisher
Vaishali
