Elevator section, plan and installation auto-cad details dwg file

Description:

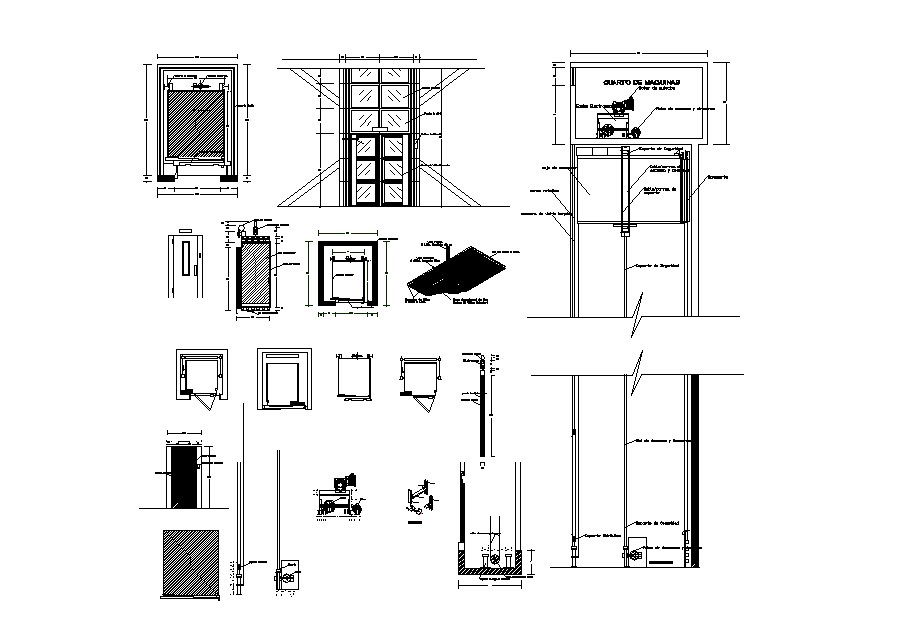

Elevator section, plan and installation auto-cad details that includes a detailed view of key plan details, machine room plan details, counter weight details, enlarge details, enlarge plan, sectional details, key section details, febrication of castellated beam details, welded splice joints, bolted spice joints details, typical apex hinge joints details, alternative details, isometric view, details plan, portal frames, knee details, plywood facede portal frames and much more of lift elevator details.



Category : Cad Machinery
Sub category : Lift-Elevator
File Type : Autocad
File ID : 64064
Type : Gold
Size : 423.08 KB
