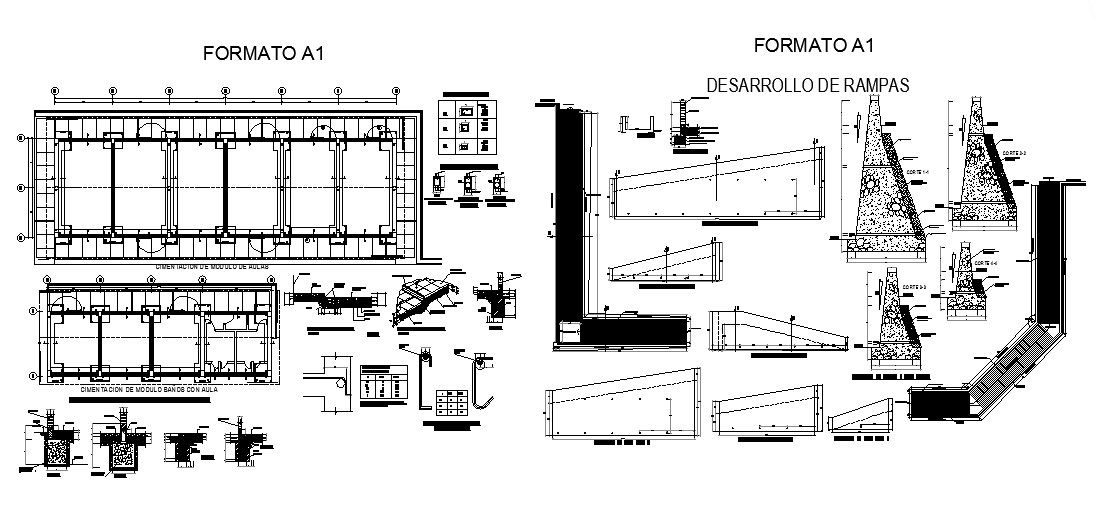

Foundation plan and ramp walk construction details dwg file

Description:

Foundation plan and ramp walk construction details that includes a detailed view of the foundation, side typical shoe, typical central shoe, columns, foundations, shoes, cistern tank, walls of concr. arm., beams flat, peralted beams, foundation beams, (cement: sand: crushed stone), typical detail of reinforcement and ended of walls of masonry, detail of cistern, vehicular blocking plant, colonial type adoquin, vehicular adoquin, gasket detail, grade section, adoquined plant and, pedestrian grade, general implementation, profile 1 section c, horizontal scale 1: 1000, vertical scale 1: 1000, single concrete, wall a build, border of, cut aa and much more of construction details.

Category : Detail
Sub category : Construction detail
File Type : Autocad
File ID : 64066
Type : Gold
Size : 1622.46 KB
Publisher
Vaishali
