Residential Building Design with Typical Plan Elevations and Sections

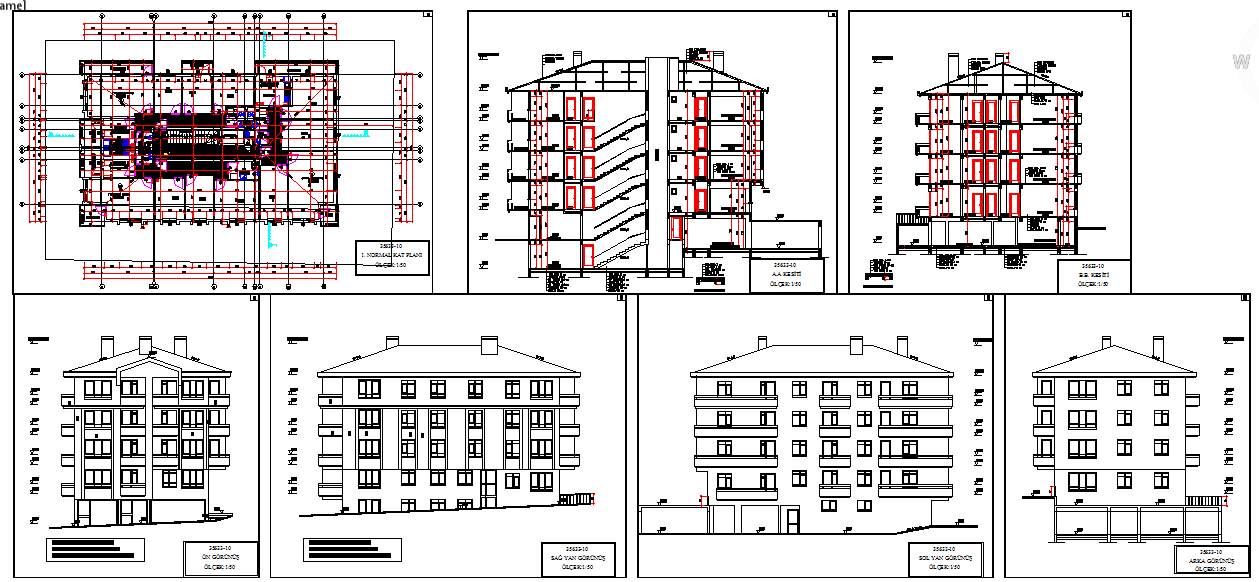

This AutoCAD DWG file presents a residential building design featuring one characteristic floor plan, all four elevations representing the main facades, and two detailed sectional drawings. The drawing set is prepared with accurate measurements, grid references, and level markings to support professional architectural and construction use. The typical plan illustrates apartment layouts, internal walls, circulation paths, staircases, and balcony positions. Elevation drawings clearly show facade composition, window alignment, balcony projections, and overall building height, while the sections explain vertical connections, floor-to-floor heights, and structural alignment across all four floors.

Each characteristic apartment generally includes a living room, bedrooms, a toilet, a bathroom, a hall, and a balcony. The number and size of rooms vary depending on apartment configuration, and almost every apartment is designed with its own balcony. Room dimensions, wall thicknesses, and access points are clearly defined for design coordination. This residential building design DWG file is suitable for architects, civil engineers, interior designers, and builders working on low-rise apartment projects, housing developments, and residential planning with complete plan, elevation, and section drawings.
