Door and window installation details with brick wall construction dwg file


Description

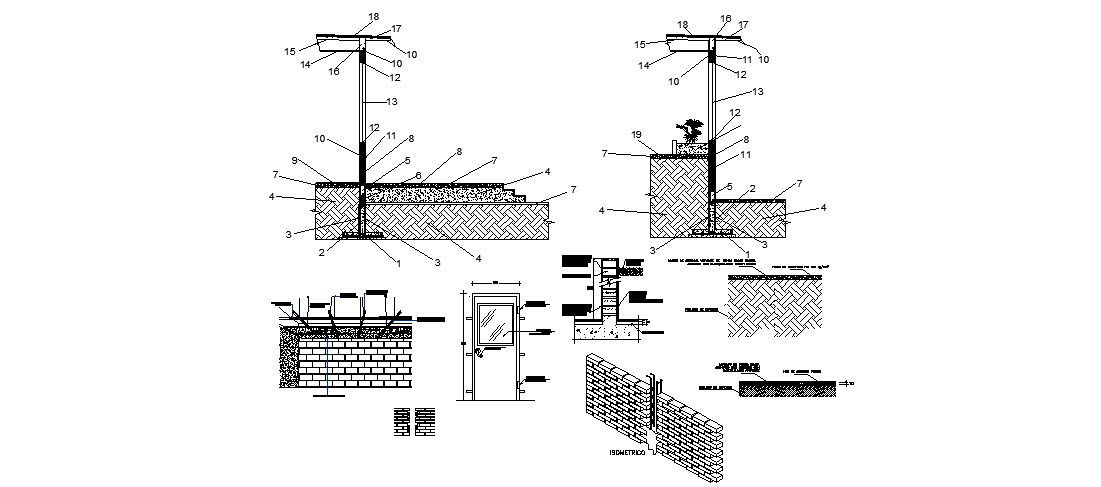

Door and window installation details with brick wall construction that includes a detailed view of door elevation, window elevation, welded plate for grappling the clamp, door elevation details, door section details, double swing handle (with placement accessories), reinforcement rib, expanded metal, ceramic block, ceramic, block, lintel 2 irons, wood cap, frame and much more of door and window installation details




File Type: DWG File ID: 64258

Uploaded by:


Vaishali
India
