Duplex House Plan Design in AutoCAD – Detailed Layout and Dimensions

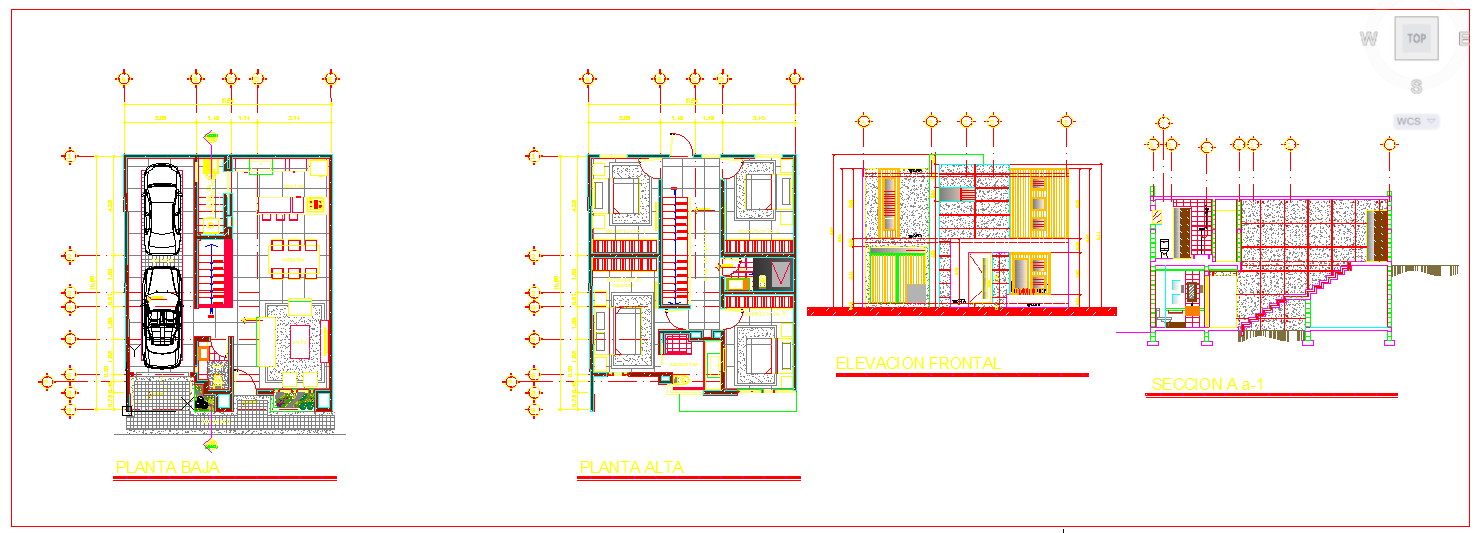

Download the Duplex House Plan Design in AutoCAD format, providing complete working drawings that define construction specifications for a residential duplex house. This drawing includes accurate dimensions, room layouts, wall positioning, and spatial organization required for proper planning and execution. The plan clearly represents both units of the duplex, ensuring efficient use of space while maintaining functional separation. It supports architects and engineers during design coordination by presenting clear residential zoning, circulation paths, and structural alignment details essential for duplex housing projects.

The AutoCAD duplex house plan also includes detailed construction information such as material indications, layout notes, and dimensional clarity to support on-site work. Each space is designed to meet residential planning standards while allowing flexibility for customization. Compatible with AutoCAD, Revit, and Google SketchUp, this file ensures smooth workflow integration across design platforms. The drawing focuses strictly on architectural planning accuracy, making it a reliable resource for residential duplex construction and documentation.
