Entry Access Plan Detail Drawing with Road Width and Turning Radius

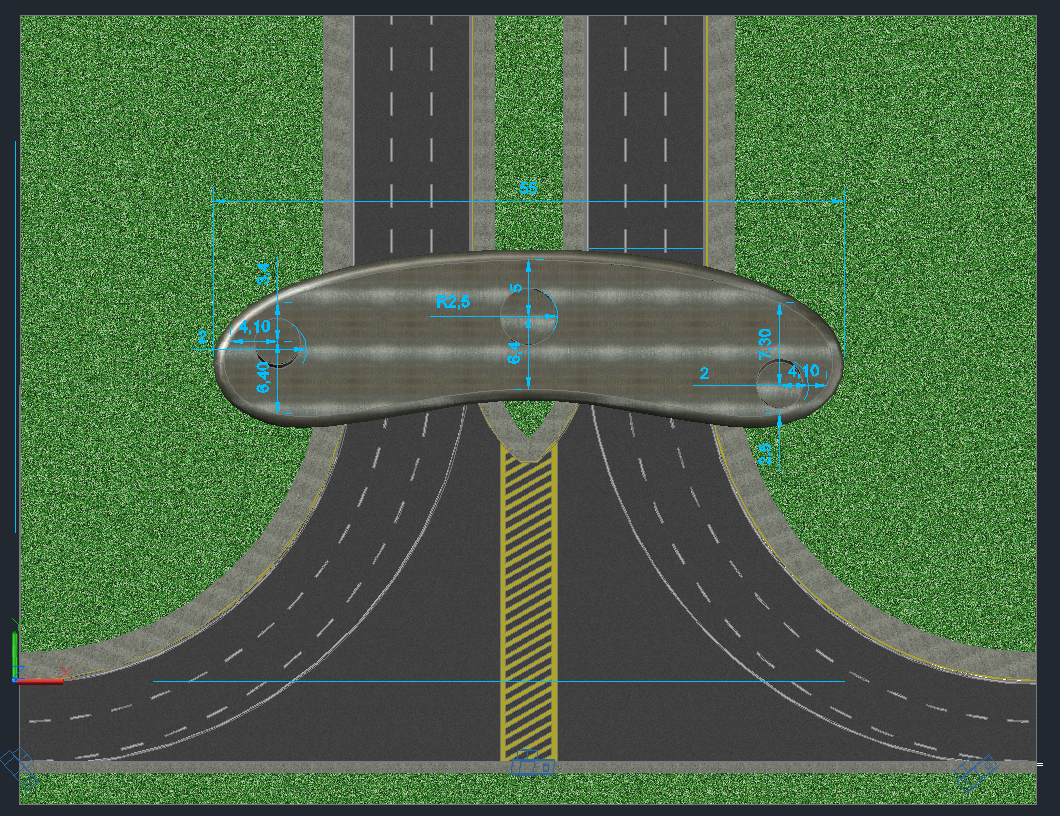

This entry access plan detail drawing is a precise AutoCAD layout prepared for controlled entry and exit planning in residential, commercial, and institutional developments. The drawing illustrates a clear access control arrangement with defined roadway alignment, central median, entry island, and curved approach lanes. Key measurements such as overall access width of approximately 55.00 meters, turning radii marked around R2.5 meters, lane widths, and edge offsets are clearly dimensioned in metric units. The design supports smooth vehicular movement, proper turning clearance, and organized traffic flow at entry points while maintaining safety and visibility.

The plan detail also highlights landscaped buffer zones, curb edges, road markings, and controlled access geometry to restrict and guide authorized vehicle entry. Dimension annotations define curve lengths, offsets, and transition zones, making the drawing suitable for execution and approval submissions. This entry access plan AutoCAD DWG file is useful for architects, civil engineers, planners, and builders working on gated communities, campuses, commercial sites, and secured facilities. The drawing integrates seamlessly with AutoCAD, 3D Max, Revit, and Google SketchUp workflows, providing a reliable reference for site access design, traffic management planning, and construction documentation.
