This AutoCAD DWG luxurious house plan presents a stunning 3200 sq ft residential layout thoughtfully designed for architects, civil engineers, interior designers, and builders aiming to blend modern functionality with graceful detailing. The design promotes open living while maintaining privacy in essential spaces.

Ground Floor Details

The ground floor features a spacious living room (556×383 cm) that forms the heart of the home. A dining area (330×350 cm) connects directly to a kitchen (270×330 cm) and fire kitchen (240×330 cm) for efficient workflow. The plan also includes a store room (180×120 cm), utility area (180×330 cm), and two toilets (270×180 cm each). A master bedroom (450×360 cm) with an attached toilet (270×180 cm) and dressing area (150×180 cm) enhances privacy and comfort. Additionally, a north-west bedroom (360×360 cm) and a west-facing bedroom (390×360 cm) provide ample space for family or guests.

Special Features

Unique to this design is a dedicated office room (270×330 cm) for professional use and a prayer area for spiritual peace. A car porch (300×540 cm), verandah, and outdoor garden add aesthetic beauty and convenience. The sit-out area opens into landscaped surroundings, creating a refreshing entryway filled with natural light and ventilation.

Design Essence

Every element of this house reflects modern architectural excellence—from its smart zoning to seamless spatial flow. Designed for comfort, elegance, and practicality, this plan is ideal for professionals seeking adaptable layouts in AutoCAD DWG format for residential or villa projects.

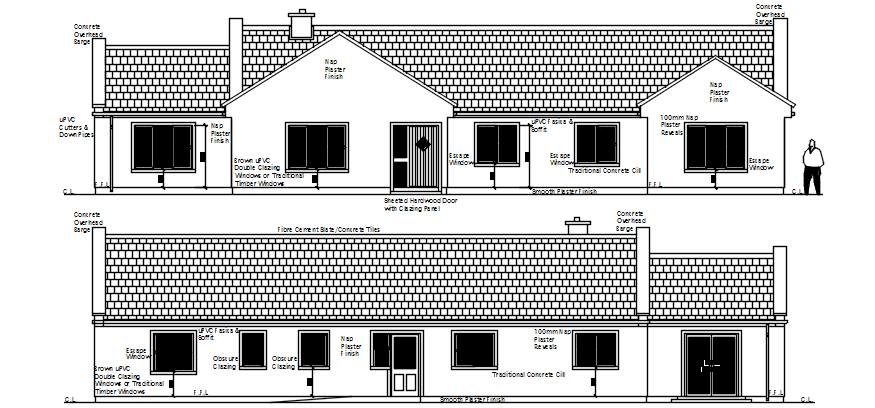

Autocad drawing of sectional elevation of the house
