Curved House DWG Plan with Elevation and Sectional Drawing Views.

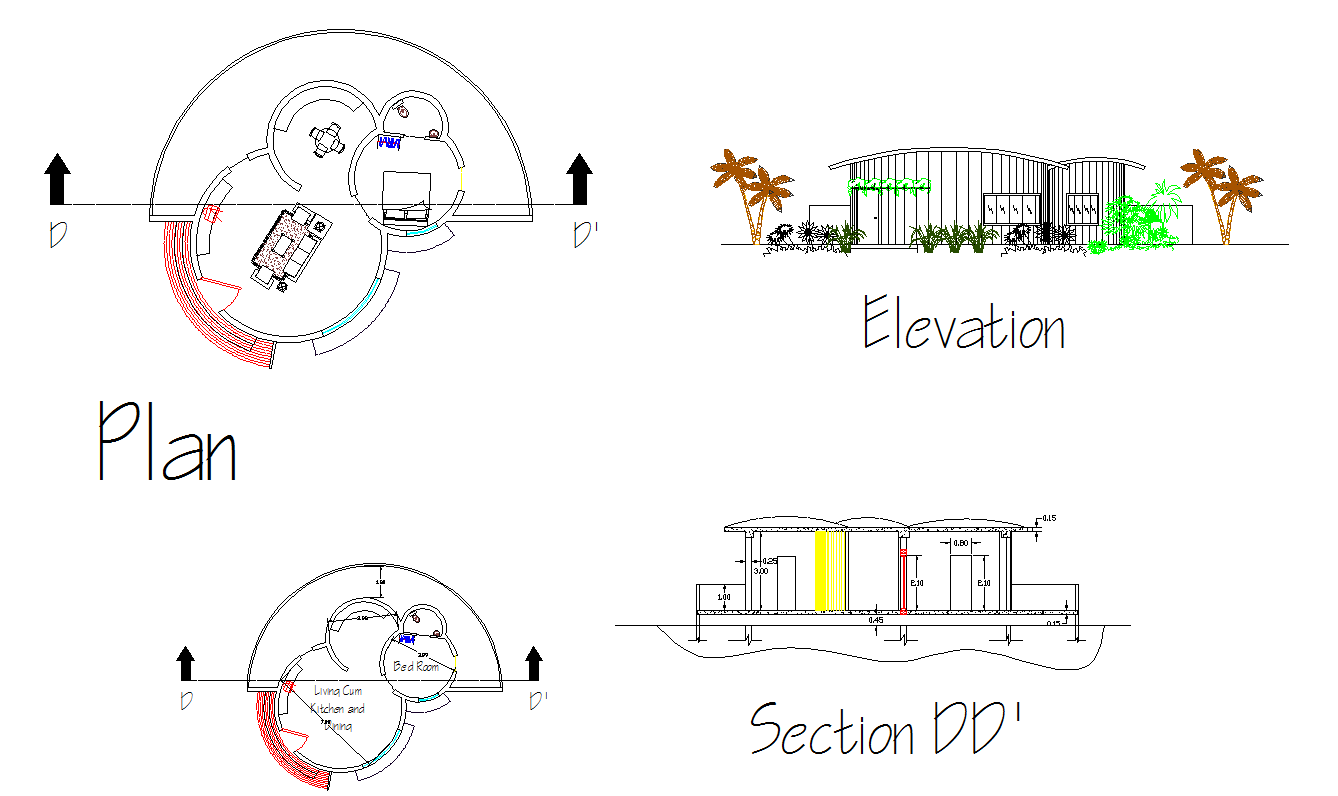

This AutoCAD DWG file features a unique curved house design with detailed floor plans, elevation views, and sectional drawings. The plan showcases a spacious living area with a combined kitchen, dining, and living room, along with a bedroom area. The design is outlined with precise measurements and clear annotations for each space, ensuring efficient space planning and functionality.

In addition to the floor plan, the elevation and sectional views (Section DD') provide insights into the exterior design, roof structure, and dimensions. The building's curvature is highlighted in the sectional drawing, showing the design's aesthetic and structural elements. This DWG file is perfect for architects, engineers, and interior designers looking to work with innovative residential designs. It offers comprehensive details for construction, renovation, or concept development, making it an invaluable resource for design professionals.
