Ceiling Pent House Plan Design with Accurate Dimensions and Layout

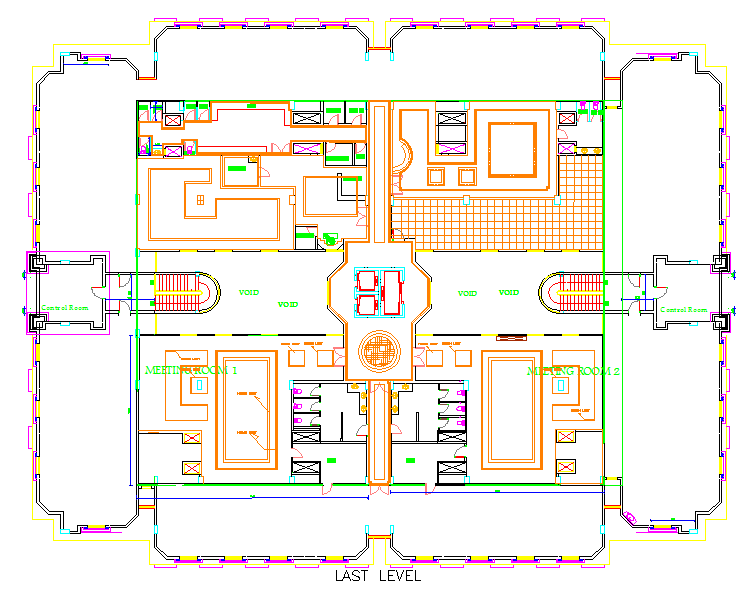

This AutoCAD DWG drawing provides a detailed ceiling penthouse plan layout, designed with precision for architects, civil engineers, and interior designers. The drawing includes accurate dimensions for the ceiling design, room layouts, stair placements, windows, and structural elements. The penthouse plan ensures a functional, aesthetically pleasing living space, with ample natural light and ventilation. It includes details on the ceiling structure, lighting fixtures, and partition placements to optimize the space. Each element is dimensioned clearly to facilitate easy integration into construction and design projects.

The ceiling penthouse plan also offers alignment details, structural calculations, and measurements needed for construction coordination and execution. This DWG file is compatible with AutoCAD drafting, 3D Max visualisation, Revit BIM coordination, and Google SketchUp layout planning, making it versatile for various design tools and needs. Access this essential resource through a Cadbull subscription to streamline your architectural and interior design workflow.
