Two Bedroom Upper Floor Layout With Balcony and Stairs CAD Plan

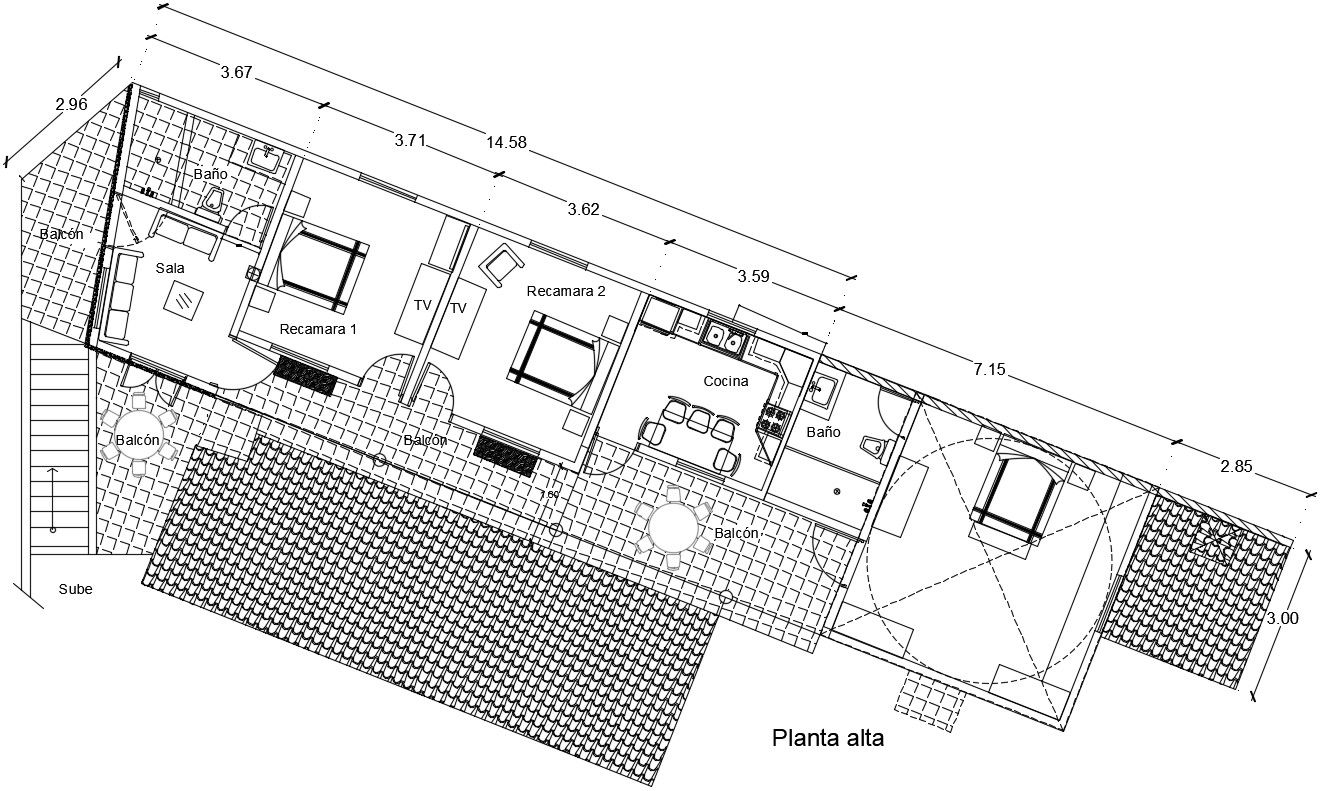

This drawing shows a detailed upper-floor residential plan created in AutoCAD DWG format with clear space arrangement and accurate measurements. The image presents two bedrooms labelled Recamara 1 and Recamara 2, a living area, kitchen space, two bathrooms, and multiple balcony areas. The layout includes marked dimensions, wall thickness, door swing directions, window placements, and circulation paths. Furniture symbols such as beds, sofas, TV units, dining chairs, and kitchen counters are clearly shown. The plan also displays stair access, terrace roofing patterns, and balcony railings. Overall building length is approximately 14.58 meters, with individual room widths and sections marked in meters.

This residential upper floor plan CAD drawing highlights internal zoning and connectivity between rooms, as shown in the image. The layout displays dimension lines, section indicators, boundary outlines, and structural alignment. Balcony seating areas, tiled flooring patterns, and open spaces are clearly represented. The drawing uses consistent scaling, clean line work, and proper layering for technical drafting. All visible elements in the image are arranged to support architectural layout analysis, floor planning, and construction reference based strictly on the displayed design.
