Sports Court AutoCAD Detail Drawing with Dimensions and Layout

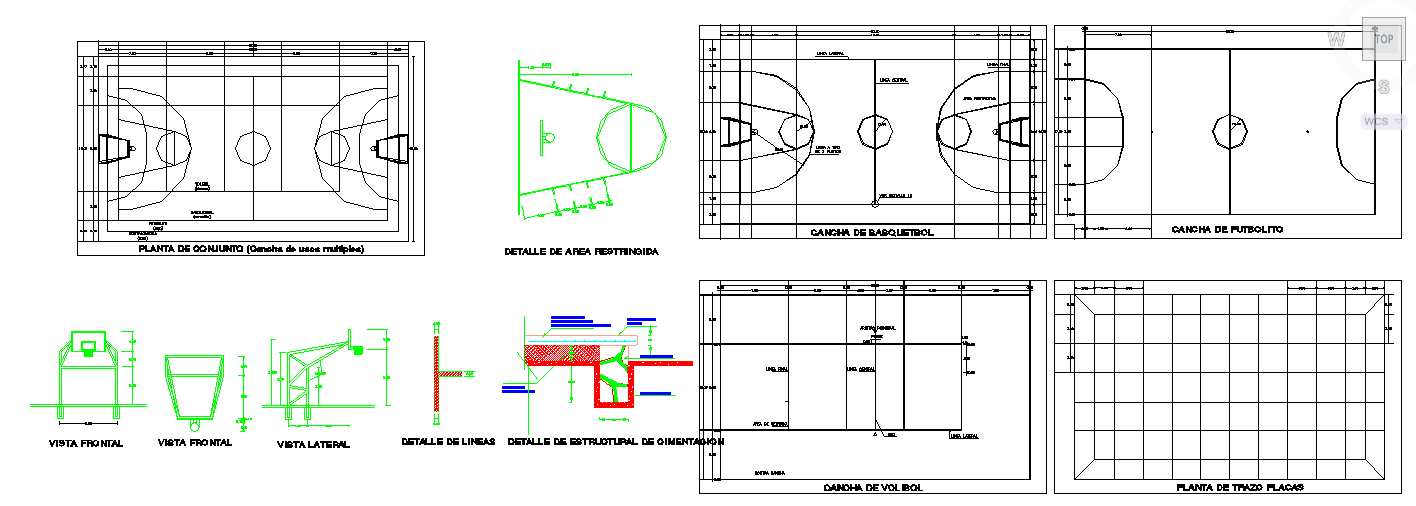

This sports detail AutoCAD drawing presents a comprehensive set of layouts for multiple indoor court types, including basketball, volleyball, and futsal. The file includes full court dimensions, center lines, restricted areas, goal and hoop position,s and clear boundary markings. Each sports layout is drawn to scale with precise measurements to support professional architectural and engineering planning. The drawing also highlights spacing between courts, safety clearance zones, and alignment details essential for multi-use sports facilities.
