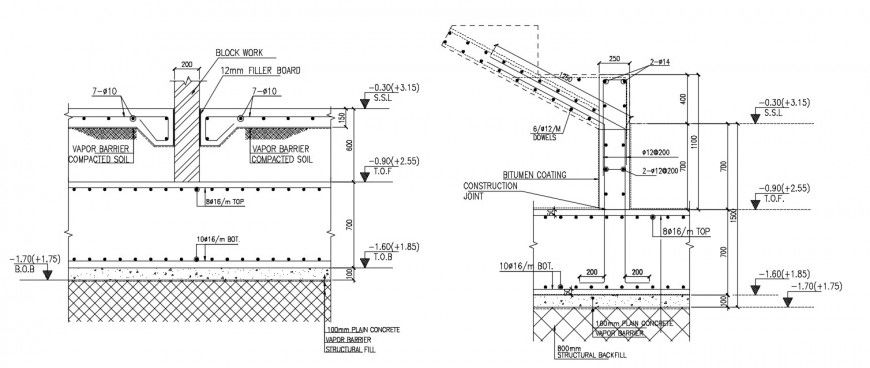

Detail of RCC foundation curtailment details in dwg file

Detail of RCC foundation curtailment details in dwg file that includes foundation footing details with reinforcement details in tension and compression zone along with main and distribution hook up and bent up bars details. Stirrups area provided to hold up bars in position and effective clear cover details also included in drawings. The structure is a reinforced concrete cement (RCC) structure.
