Raft foundation 2d view CAD RCC structural blocks dwg file
Tags
#footing#autocad#autodesk#free download#structure#concrete masonary#cad block#software
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

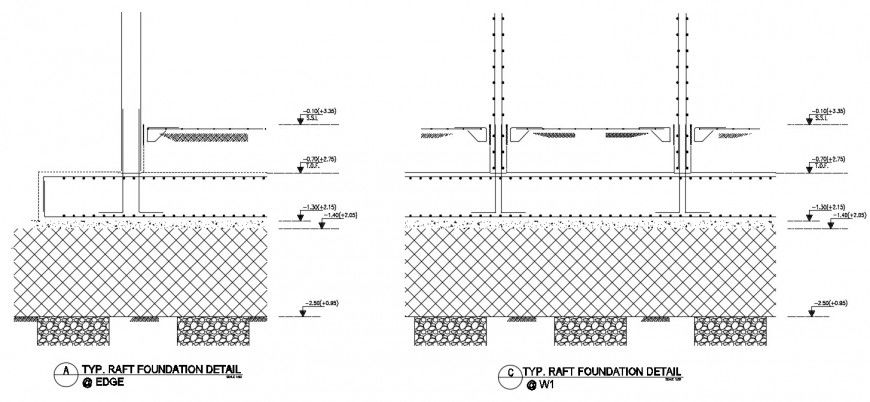

Raft foundation 2d view CAD RCC structural blocks dwg file that includes foundation footing details with reinforcement details in tension and compression zone along with main and distribution hook up and bent up bars details . Stirrups are provided to hold up bars in position and effective clear cover details also included in drawings. The structure is a reinforced concrete cement (RCC) structure.
