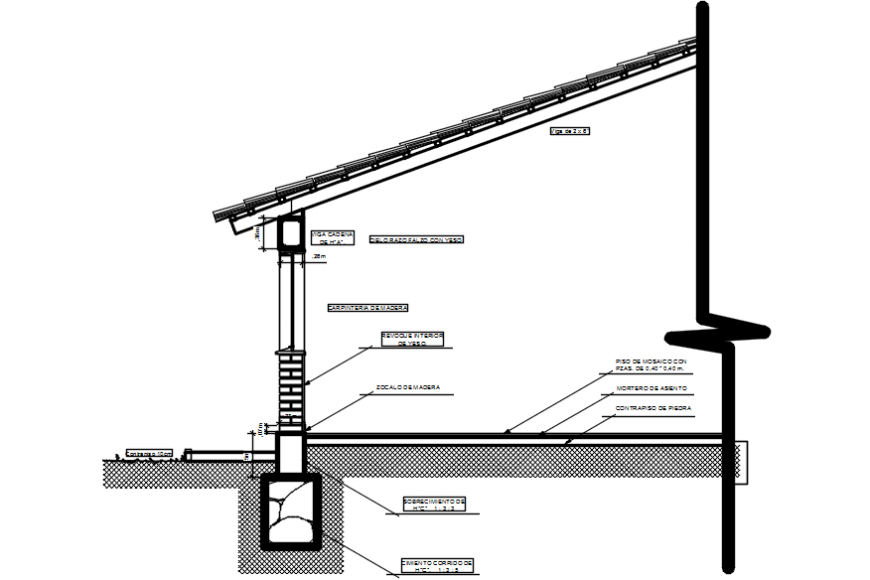

One story roof house cut constructive section and roof structure details dwg file


Description

One story roof house cut constructive section and roof structure details that includes a detailed view of free auto-cad file including flooring view with wall construction with memory of materials, footings details, column view and beam construction, covers closure type with soil buried wall closure and interior partition and granite veneer of the country with steel supports, halfeneisen type with Brick partition with plaster plastering and Concrete wall  and much more of building details.




File Type: DWG File ID: 74875

Uploaded by:


Eiz Luna
New-Zealand
