Single Family House Design Layout with Ground Floor Rooms Plan

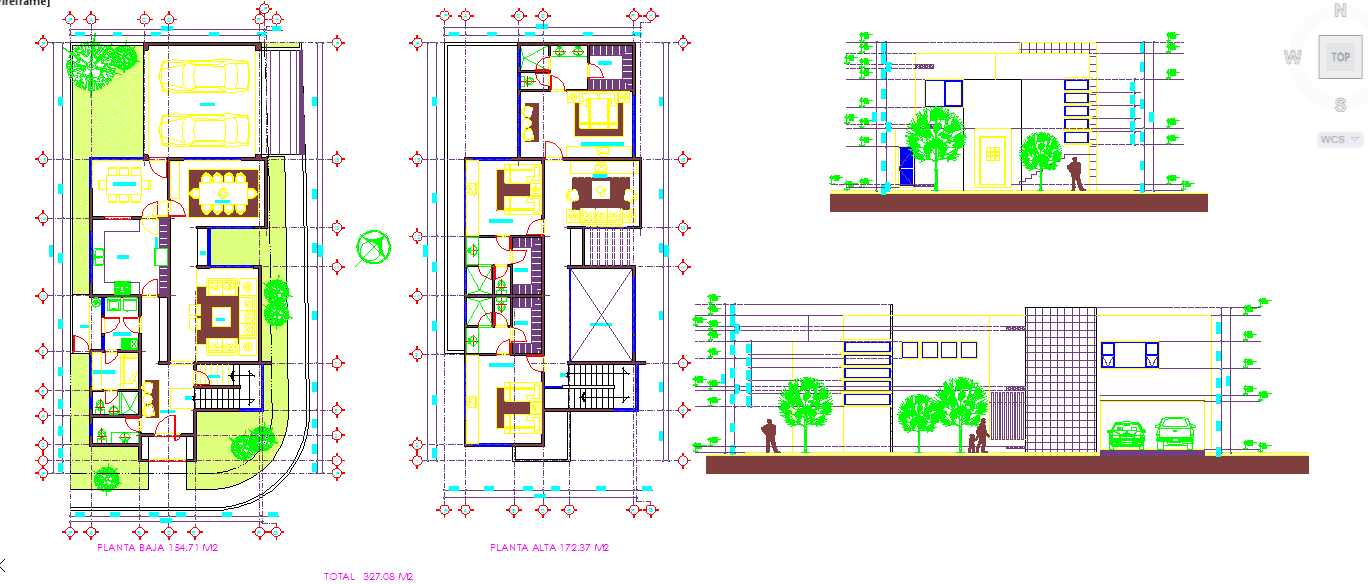

This Single Family House Detail drawing provides a complete architectural layout of a single dwelling unit. The plan includes a bedroom, living areas, kitchen, dining space, bathrooms, and circulation zones arranged efficiently for modern residential living. Wall thickness, door and window placement, and room dimensions are clearly defined for accurate planning and construction. This layout ensures practical functionality, privacy, and optimized space utilization for a single household. The AutoCAD DWG drawing is suitable for architects, civil engineers, interior designers, and builders. It can be integrated with Rivet, 3d Max, and SketchUp for 3D visualisation, design coordination, and project execution.
