Footing ground beam plan cad file


Description

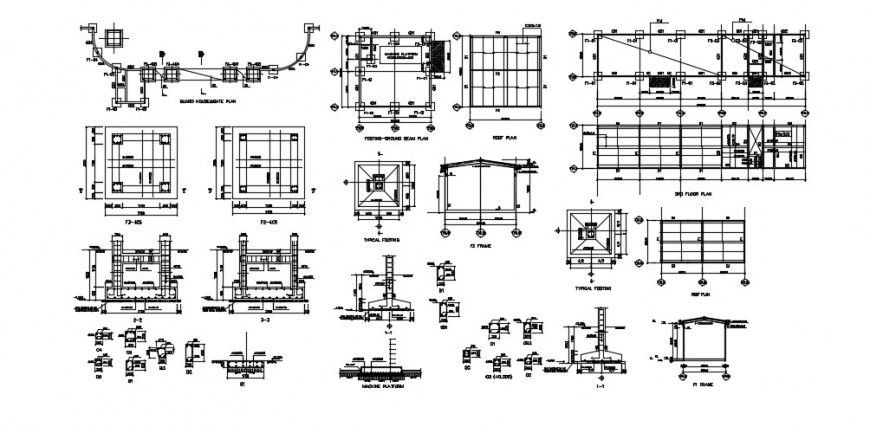

2d cad drawing of footing ground beam plan includes roof detailing, typical frame and footing detail, house gate plan detail here use concrete grade 300, stone 10*20, 400 mm thickness, double steel layer 14@200, pvc layer under slab 0.3 mm thk and base on road structure, compacted crushed stone 200 mm thickness , wall compacted natural ground.



Eiz Luna
New-Zealand
File Type: DWG ID: 76838
