Foundation Design Drawing with Footing Wall Layers and Dimensions

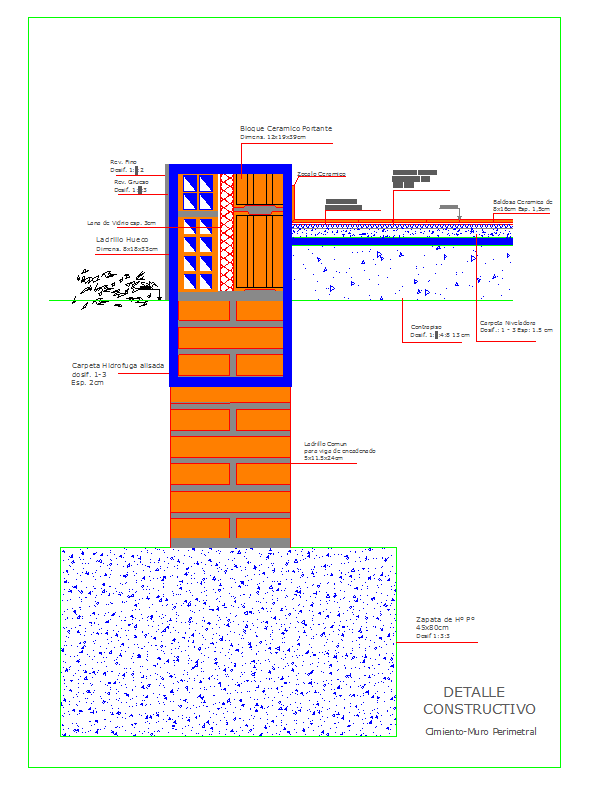

This Foundation Design drawing is prepared in AutoCAD format and shows complete foundation construction detailing with clear section views. The drawing illustrates footing size depth and base preparation for proper load transfer to soil. Foundation wall construction is detailed with brick masonry layers insulation and waterproofing treatment. Floor buildup shows compacted fill concrete layer and finished surface thickness. Dimensions are clearly marked for footing width wall thickness and level differences. Material annotations support accurate execution and site coordination. This drawing focuses only on structural foundation planning for residential or building construction.
