Steel Slab Structure Detail Drawing with I Beam Floor Section

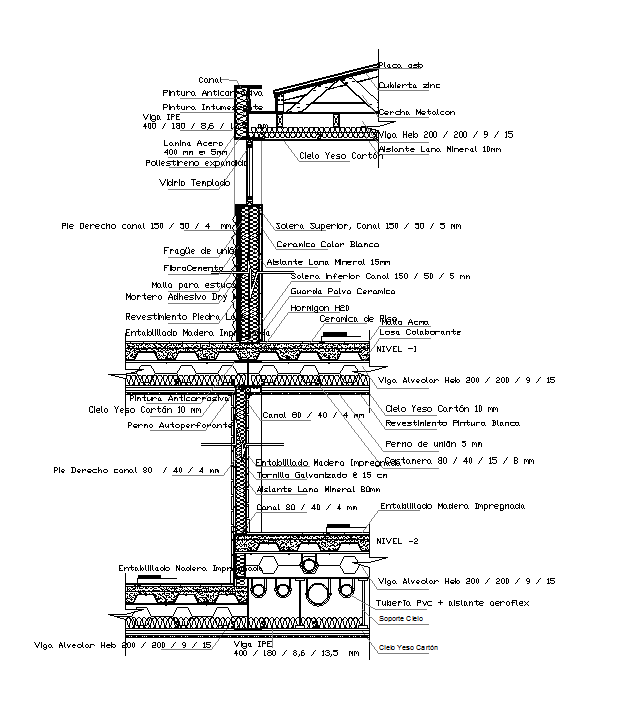

This Steel Slab Structure Detail drawing is prepared in AutoCAD format and presents a clear sectional view of steel floor construction. The drawing shows structural steel members including I beam section IPE 400 with channel profiles sized 150 50 5 mm for load support. Slab buildup is detailed with concrete layer slab thickness 10 mm and insulation layer of 15 mm for performance clarity. Connection details explain fixing between steel beams slab and wall elements. Floor and ceiling build up shows gypsum board layers and service space coordination. Dimensions and material notes support accurate structural execution. This drawing is suitable for residential and commercial steel slab construction planning.
