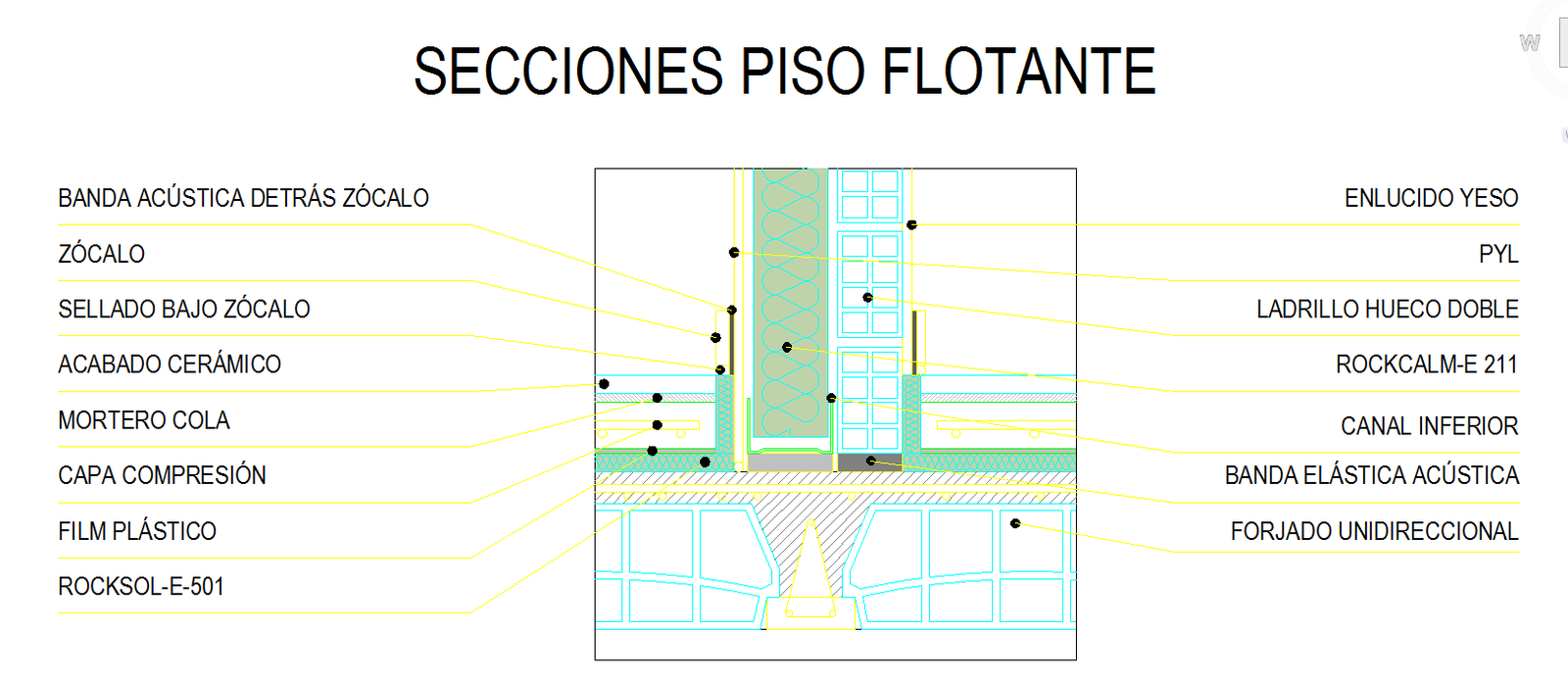

Construction Floor Detail Drawing with Floating Floor Layer Sections

This Construction Floor Detail drawing is prepared in AutoCAD format and presents a clear floating floor section with acoustic and thermal layers. The drawing shows ceramic floor finish with mortar bedding and compression layer for load distribution. Plastic film and Rocksol E 501 insulation are detailed for moisture and sound control. Acoustic elastic band and sealing below skirting improve vibration isolation. Structural slab and unidirectional floor system are clearly defined for support continuity. Wall connection details include gypsum finish PYL and double hollow brick for acoustic performance. All layers are labeled and dimensioned for accurate construction execution.
