Bench Detail Drawing with Metal Structure Wooden Seating Details

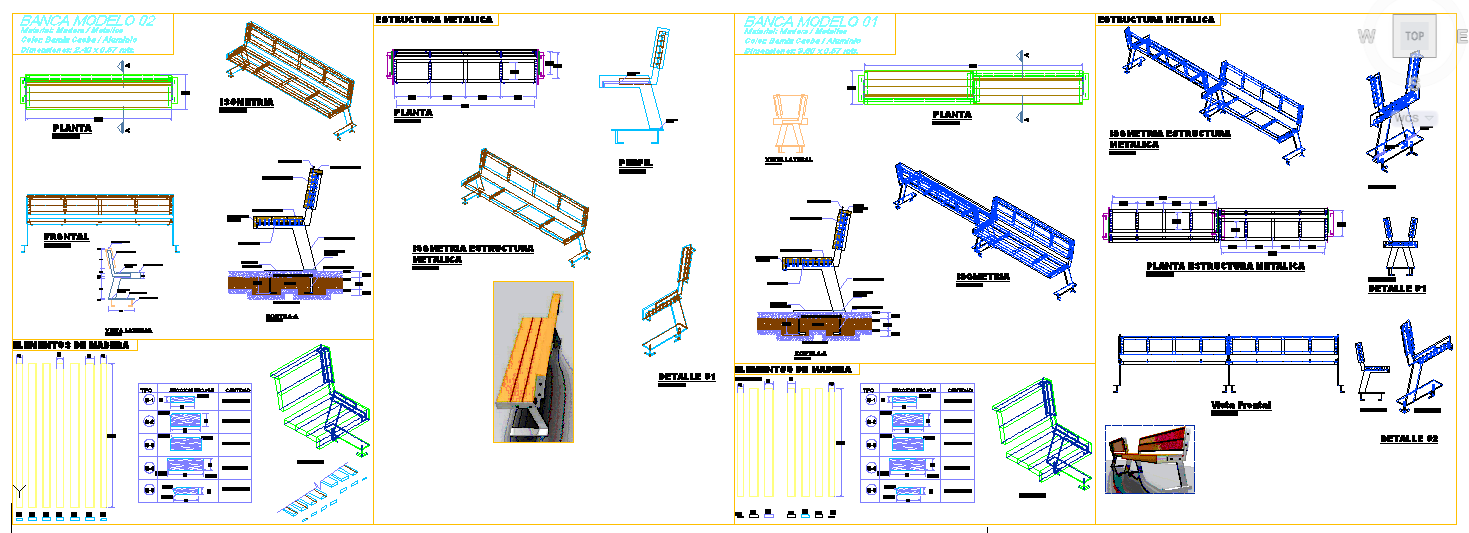

This Bench Detail drawing is prepared in AutoCAD format and presents complete technical detailing of seating bench design. The drawing includes bench plan front view and isometric views for clear dimensional understanding. Structural details show metal frame configuration with fixing points and support alignment. Wooden seating slats are detailed with spacing thickness and placement over the structure. Section details explain bench height seating depth and ground fixing method. All measurements and annotations support accurate fabrication and site installation.
