Bathroom Mirror Cabinet Detail Drawing with Light Fixture and Sections

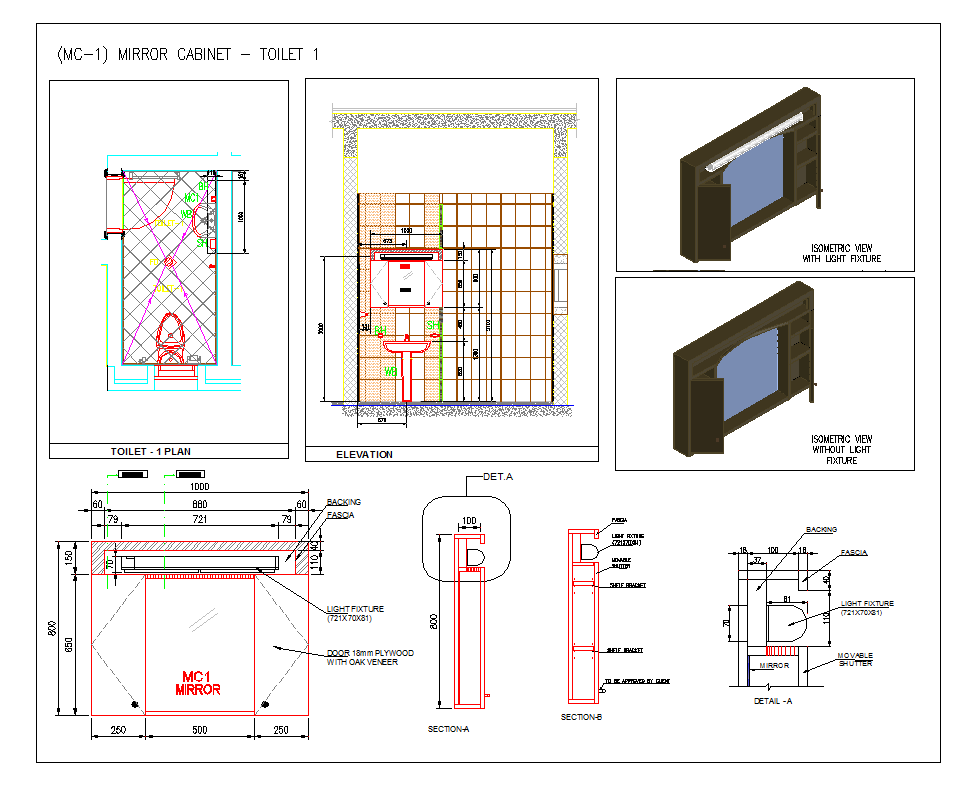

Bathroom mirror cabinet layout with light fixture detail presents a complete interior drawing with toilet plan, elevation views, and detailed cabinet positioning prepared for bathroom design and installation reference. The drawing includes mirror cabinet alignment with wash basin positioning and clearly defined mounting heights for proper layout coordination. Cabinet dimensions, mirror placement, plywood door thickness, and oak veneer finish details are represented for improved understanding of furniture arrangement. Bathroom mirror cabinet, toilet elevation drawing, light fixture detail, and cabinet section layout information are integrated within the design to support drafting accuracy and interior planning requirements.

This bathroom mirror cabinet layout with light fixture detail also includes sectional representations showing cabinet depth, internal shelving arrangement, backing fascia details, and movable shutter design. Isometric views with and without light fixture placement are represented for installation visualization and design understanding. Light fixture dimensions, support fixing details, and furniture arrangement references are clearly indicated to improve construction documentation.
