Electrical Connection Detail Drawing with Meter Socket and Earthing

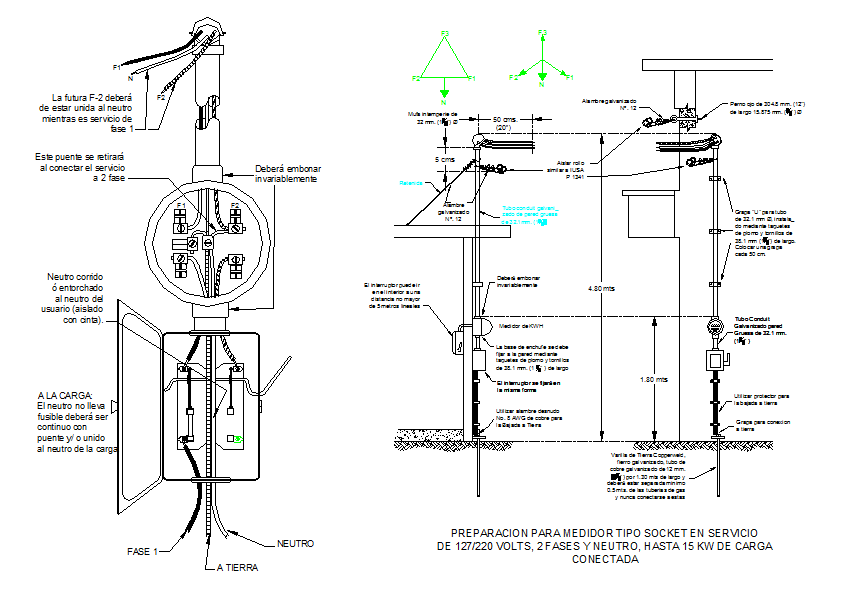

This AutoCAD file presents a detailed electrical connection layout showing meter socket preparation for 127 220 volts with two phases and neutral, suitable for loads up to 15 kW. The drawing includes clear wiring arrangements for phase, neutral, and earthing connections with proper insulation routing. It illustrates pole mounted meter installation, service drop alignment, conductor sizes, and fixing heights for safe electrical distribution. Grounding rod placement, earthing continuity, and protection components are clearly marked for accurate site execution. The file also covers connection points, cable entry details, and mounting clearances required for compliance. This electrical connection detail supports residential and small commercial power setups with precise technical representation.
