Toilet Installation Detail 0.38m 0.12m 4 Inch Pipe Layout File

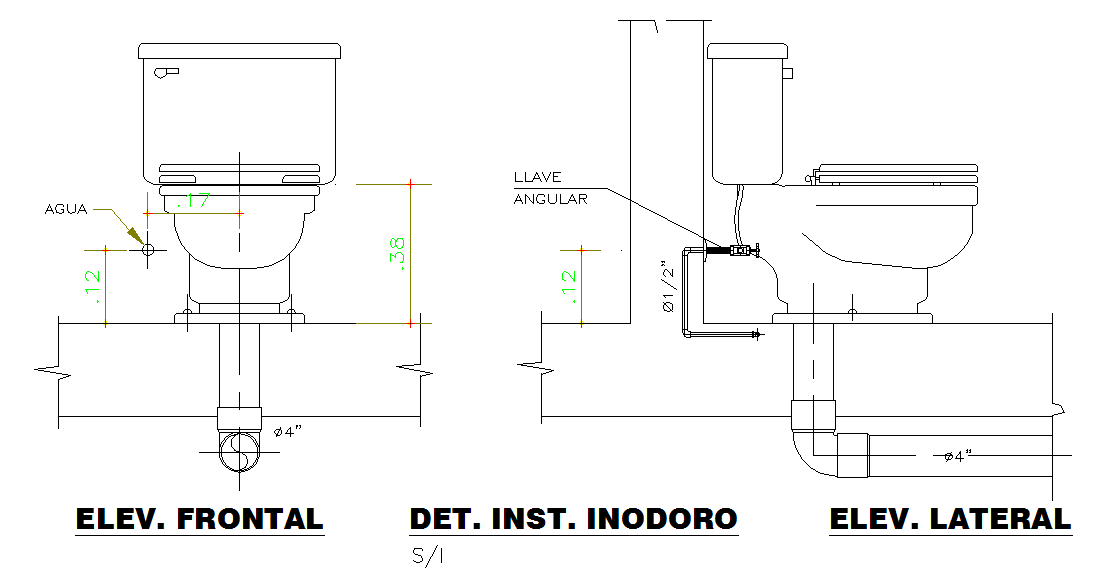

This AutoCAD drawing presents a detailed toilet installation layout with frontal elevation, lateral elevation, and installation detail S I view. The file includes 0.38m height reference, 0.12m water inlet level, and 4 inch soil pipe connection clearly dimensioned for site execution. It shows angular valve positioning, water supply connection, outlet trap alignment, and floor slab penetration detail. All pipe diameters, fixture clearances, and alignment measurements are accurately marked. This toilet installation detail supports plumbing coordination, construction documentation, and precise sanitary fixture placement planning.
