Guard House Design AutoCAD Drawing with Plan Elevation and Structure

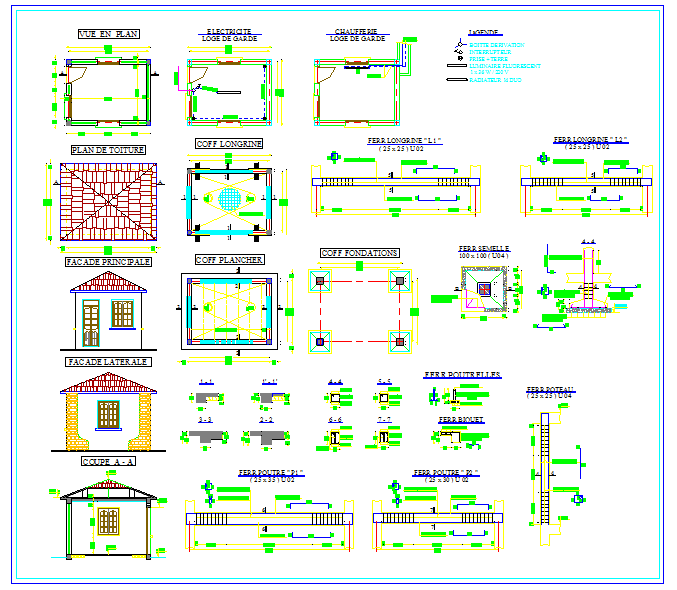

This Guard House Design AutoCAD drawing presents a complete set of architectural and structural details, including floor plan, roof plan, foundation layout, beam and column arrangement, and façade elevations. The drawing includes accurate dimensions for wall thickness, room size, door and window openings, slab depth, footing size, and roof slope. It illustrates reinforcement layouts for beams, columns, and footings, along with sectional views showing load distribution and construction layers. These technical details support proper space utilization, durability, and safety for security and monitoring cabins. The drawing supports design coordination, material estimation, and construction execution in AutoCAD, Revit, 3ds Max, and SketchUp environments. With clearly labeled measurements, reinforcement schedules, and structural notes, this guard house design file helps reduce site errors, improve construction efficiency, and ensure compliance with building standards.
