Potable Water Chamber Connection Details With Plan Section CAD

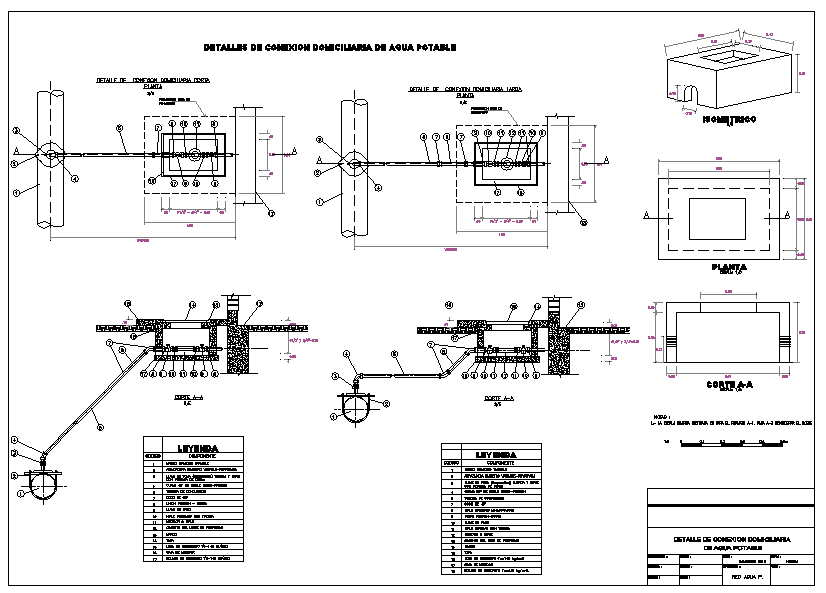

This AutoCAD DWG file includes detailed potable water chamber connection drawings prepared for underground water supply systems. The drawing set illustrates domestic water connection layouts showing inlet and outlet pipe routing, valve arrangements, and chamber construction details. Plan views define chamber size, internal clearances, pipe entry points, and cover slab dimensions, while sectional drawings explain wall thickness, base slab depth, and pipe embedment levels. Dimensions are provided in metric units, indicating chamber width and length, pipe diameters, cover thickness, and ground level references to support accurate site installation. Connection diagrams also show alignment between main supply lines and internal distribution pipes. Construction details include reinforced concrete chamber sections, waterproofing layers, pipe sleeves, and access cover installation.
