Small Pedestrian Walkway Bridge And Safety Barrier AutoCAD Design

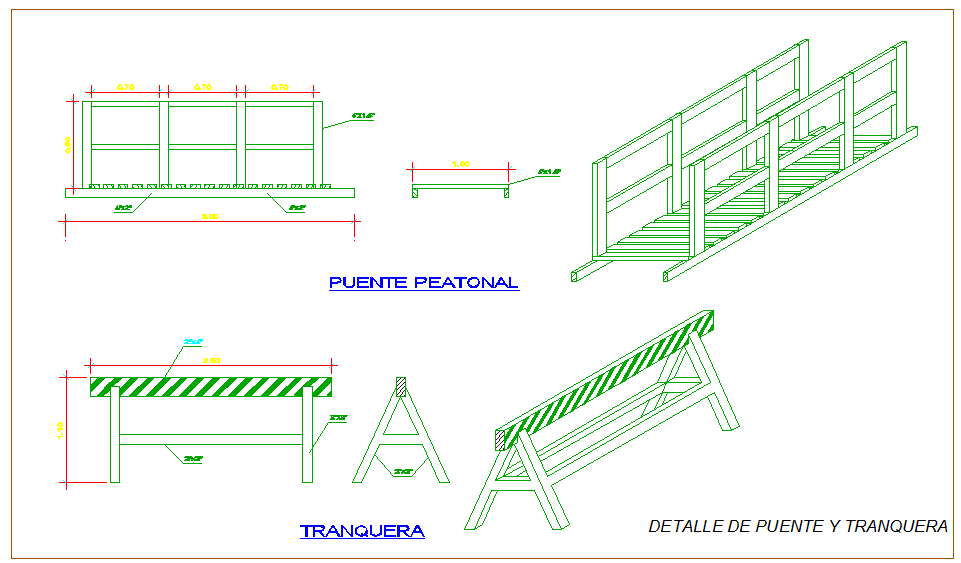

This AutoCAD drawing presents a complete pedestrian bridge and a tranquera detail designed with clear structural measurements and construction accuracy. The drawing includes front elevation, side elevation, sectional views, and an isometric view of the pedestrian bridge, showing railing height, walkway width of approximately 1.00 meters, evenly spaced vertical members at 0.70-meter intervals, and deck thickness details. The tranquera design is also illustrated with elevation and angled views, highlighting support frames, inclined braces, and plank arrangement with defined widths and heights suitable for controlled pedestrian access. Clean line work and labeled dimensions make the drawing easy to read and apply in real site conditions.

This pedestrian bridge and tranquera AutoCAD drawing is suitable for architects, civil engineers, builders, and infrastructure designers who need ready reference drawings for small access bridges, parks, rural paths, or public utility areas.
