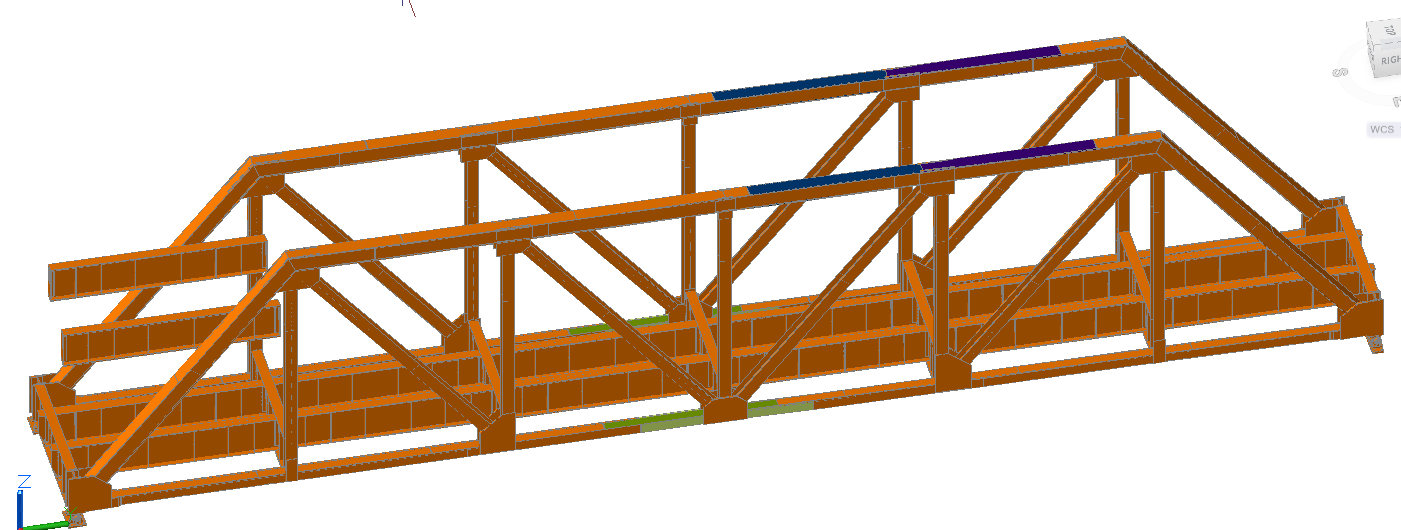

3D Steel Truss Bridge AutoCAD Drawing With Span Beam and Joint Details

This AutoCAD DWG file provides a detailed 3D model of a steel truss bridge, designed for civil engineers, architects, and structural professionals. The drawing showcases the complete truss framework, including all beams, joints, and diagonal bracing. Precise dimensions for truss height, span length, panel spacing, and support points are annotated to allow accurate planning, fabrication, and installation. The 3D visualization enables engineers to assess load distribution, structural stability, and connection integrity across the entire bridge span, ensuring safety and compliance with design standards. Each truss member and joint is clearly labeled, allowing for quick reference during structural analysis or on-site implementation.
