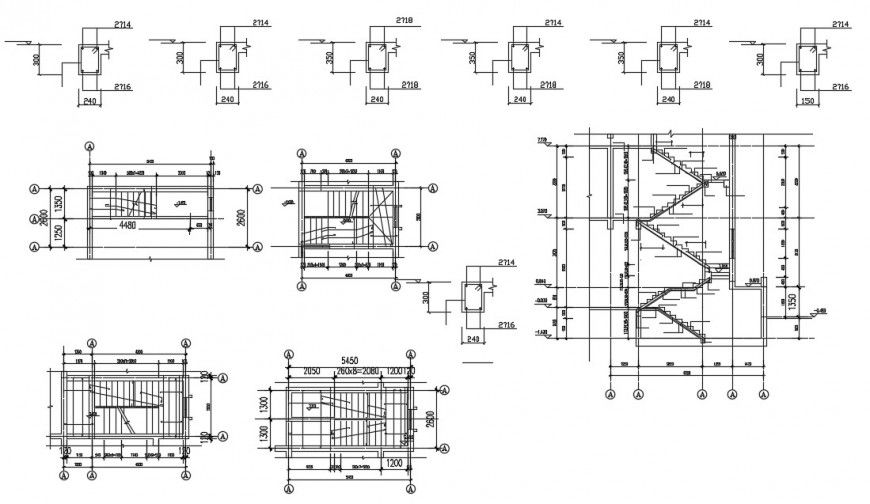

Staircase section and constructive structure with column for house dwg file


Description

Staircase section and constructive structure with column for house that includes a detailed view of front sectional view with main stairways and stairways sectional view of terrace stairways with vest scenario with ceramic floor and horizontal section and novice glue and steps details with supportive wooden railing installation, base floor concrete plan, wall construction dimensions view, supportive pillar view and much more of staircase details.




File Type: DWG File ID: 79604

Uploaded by:


Eiz Luna
New-Zealand
