AutoCAD Water Tank Platform Drawing with Pipe Support and Foundation

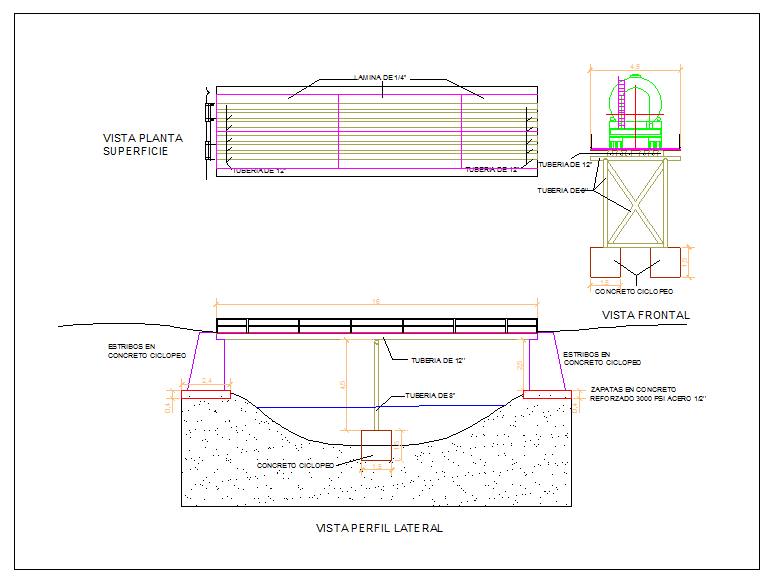

This AutoCAD DWG file shows a detailed elevated water tank support structure drawing with plan view, front elevation, and lateral profile section. The drawing includes clear dimensions such as 1.5m platform width, 4.5m support height, 1.6m span length, and foundation depth details. It illustrates 12-inch and 8-inch steel pipe supports, cross bracing system, and 1/4 inch thick sheet plate for tank placement. The layout also presents a concrete cyclopean foundation, footing size, slab level, and structural alignment for proper load distribution and stability. All structural elements, connection points, and measurement references are accurately marked for construction use.

The water tank platform AutoCAD drawing also shows surface layout, support spacing, base footing reinforcement, and section details for site execution. It includes a plan surface view, front structural frame, and underground foundation profile with concrete bed and central support pipe. The drawing is suitable for preparing working drawings, construction layouts, and installation plans for overhead water tanks. This DWG file helps engineers, architects, and builders maintain accuracy in structural design, foundation planning, and on-site implementation while following standard drafting practices.
