2D Kitchen Cabinet DWG with Sink Countertop Shelves and Measurements

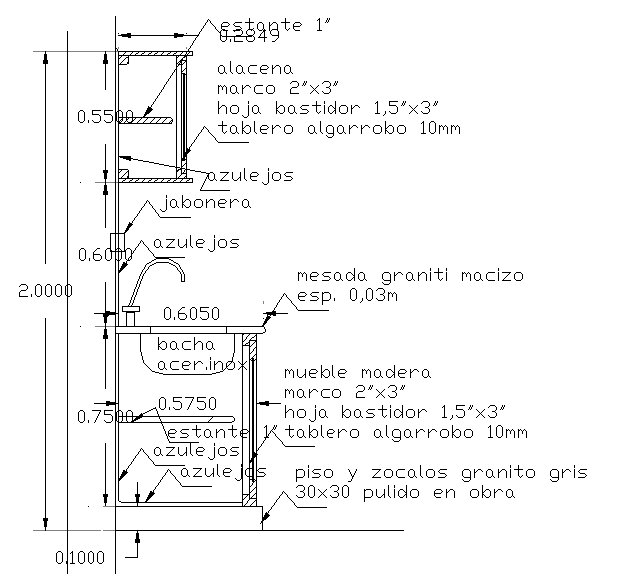

This AutoCAD 2D DWG file shows a detailed kitchen cabinet with sink, countertop, and shelving. All measurements, including countertop height, shelf spacing, and sink placement, are included for precise planning. The drawing provides material specifications such as a wood frame, a 10mm panel, a stainless steel sink, and a granite countertop.

Floor and backsplash finishes are included, specifying 30x30 polished granite. The DWG is ideal for architects, interior designers, and builders who need accurate construction and fabrication details for modern kitchen cabinetry. This file ensures functional, professional, and visually appealing kitchen designs.
