Kitchen Design AutoCAD Drawing with Plan Sections and Elevations

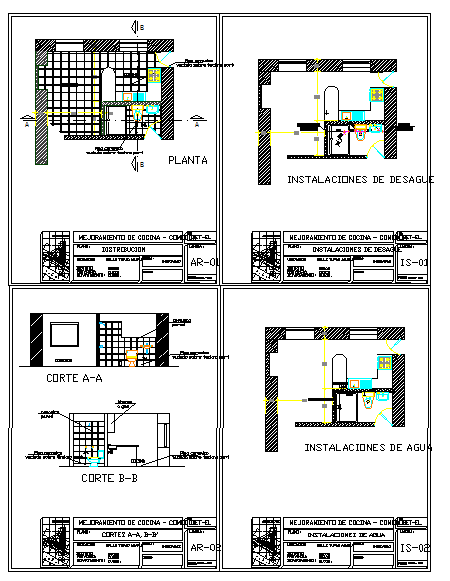

This kitchen design AutoCAD drawing offers a complete set of kitchen detailing required for professional interior planning. The DWG file includes a clearly defined kitchen plan showing furniture layout, working platform, sink position, and storage arrangement. Section drawings explain vertical dimensions such as countertop height, base cabinet depth, wall unit levels, and clear working heights. All side elevation drawings are provided to illustrate cabinet design, alignment, and overall kitchen proportions with accurate measurements and scale.

The kitchen design DWG file is highly useful for architects, interior designers, civil engineers, and builders involved in residential kitchen projects. This AutoCAD drawing helps in understanding spatial planning, furniture coordination, and execution-level detailing. The file can be easily edited, measured, and reused for customized kitchen layouts using AutoCAD and compatible software like Revit, 3ds Max, and SketchUp. Downloading this kitchen design drawing through a Cadbull subscription ensures access to reliable CAD resources that improve drafting accuracy, support construction documentation, and save valuable design time.
