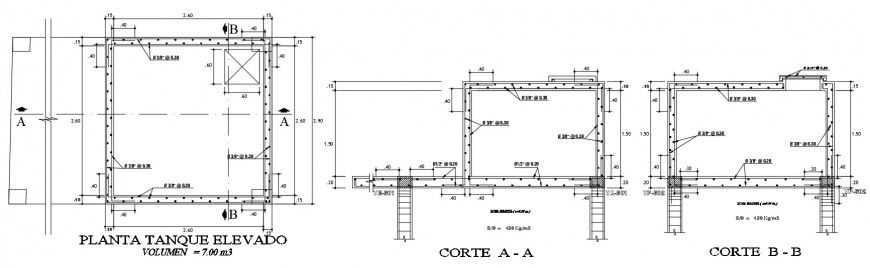

2d construction details of water tank block dwg file that shows the plan of plumbing tank with section line details and pipe system details. Sectional details of the tank with pipe brackets and dimension details also included in drawings. Reinforcement details in tension-compression zone along with main distribution hook up and bent up bars details also included in drawings.
