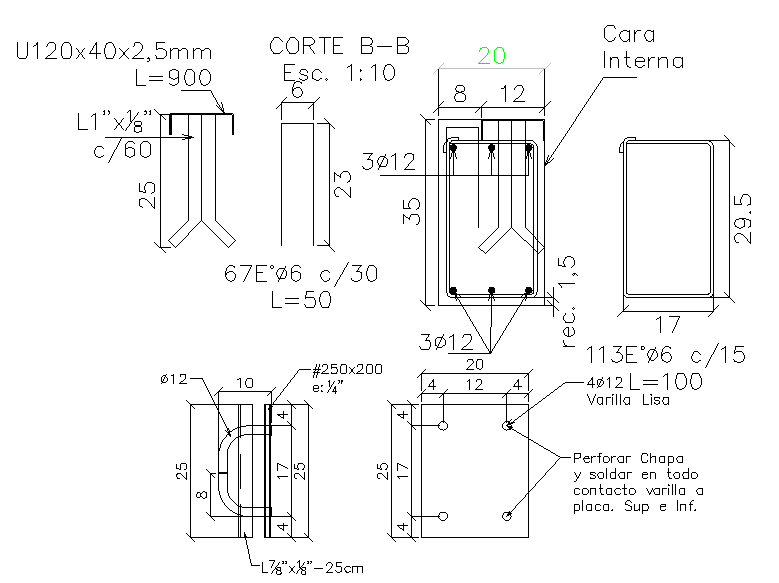

Structural Column Detail Drawing With Reinforcement And Section B B

This structural column detail drawing provides a clear and precise representation of reinforced concrete column construction used in residential building structures. The drawing includes detailed sectional views showing column size, reinforcement arrangement, and steel bar placement with exact measurements in millimeters. Longitudinal and cross sections explain vertical bar quantity, stirrup spacing, cover thickness, and internal reinforcement configuration for proper load transfer. Connection details between column, beam, and base plate are clearly marked to support accurate structural coordination at the ground floor level.

The drawing also illustrates steel plate fixing, bolt positions, welding notes, and anchoring methods for column stability. Dimension lines define column width, depth, bar spacing, and overall height for precise site execution. Additional views highlight internal faces, edge offsets, and reinforcement continuity to reduce construction errors. This structural column detail drawing is useful for architects, civil engineers, and builders to understand reinforcement logic, column fabrication, and installation accuracy directly from the AutoCAD structural detail.
