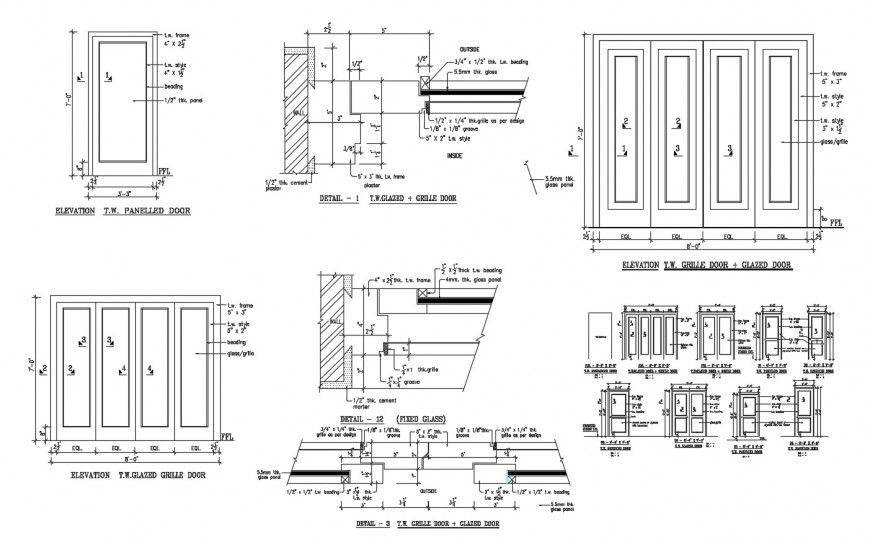

Paneled, double, glazed doors and windows elevation and installation drawing details dwg file


Description

Paneled, double, glazed doors and windows elevation and installation drawing details that includes a detailed view of door elevation and window elevation, welded plate for grappling the clamp, door elevation details and door section details, double swing handle with reinforcement rib and expanded metal and ceramic block details, ceramic with block, lintel 2 irons with wood cap and frame and much more of door and window installation details



Eiz Luna
New-Zealand
File Type: DWG ID: 84046
