Door Detail Drawing With Elevations Sections And Hardware Details

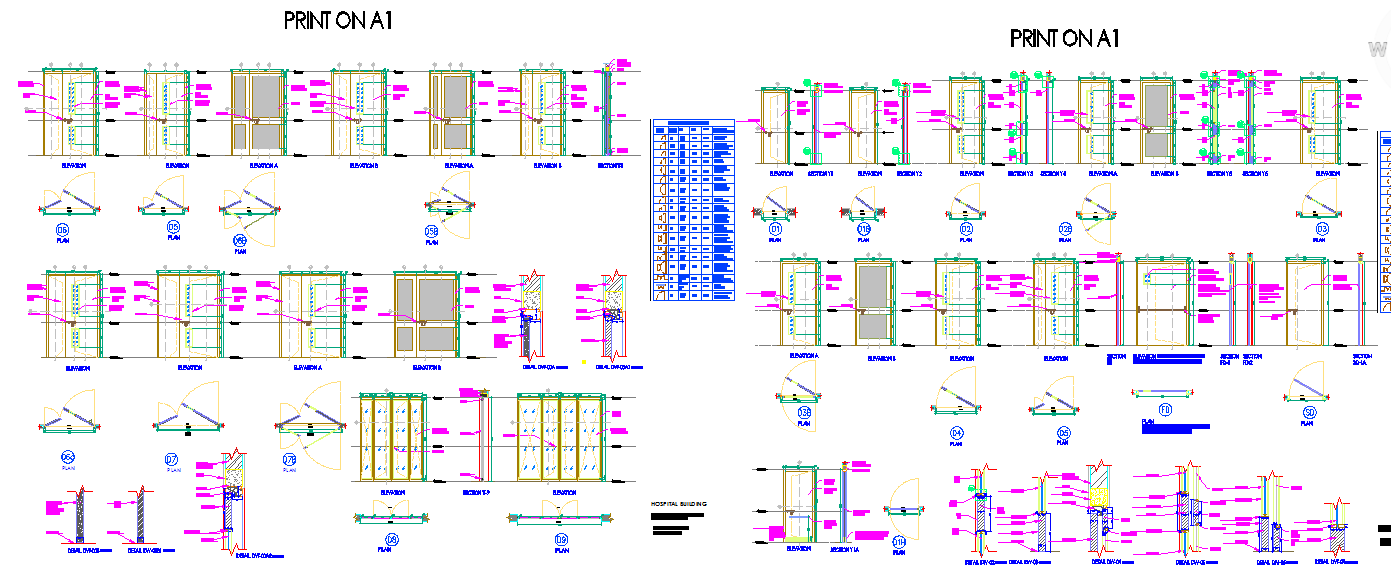

This door detail drawing presents a comprehensive set of door elevations, sectional views, and plan details prepared for precise architectural execution. The drawing includes multiple door types with clear elevation views showing frame thickness, shutter width, opening direction, and height measurements. Plan views illustrate door swing angles, clearance zones, and alignment with adjacent walls. Sectional details explain frame fixing, wall connection, lintel level coordination, and floor finish junctions, ensuring accurate installation and smooth operation of doors within the building layout.

The drawing also covers hardware positioning such as hinges, handles, locks, and fixing points, clearly marked with dimensional references. Different door configurations are detailed to support varied functional requirements across spaces. Dimension lines guide exact placement, opening size control, and frame depth consistency. These door detail drawings help architects, interior designers, and builders understand door construction logic, hardware coordination, and installation accuracy directly from the AutoCAD drawing set for reliable site execution.
