Window Panel Design Drawing With Sections Elevations And Fixing Detail

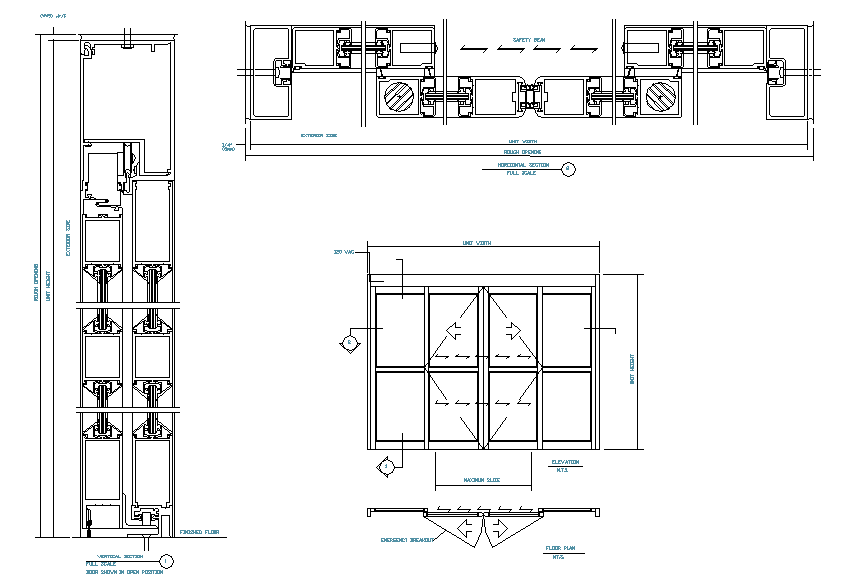

This window panel design drawing presents a detailed architectural layout prepared for accurate window installation and coordination. The drawing includes vertical and horizontal section views showing window frame depth, mullion arrangement, and glass panel positioning with precise measurements. Elevation views illustrate panel alignment, opening configuration, and overall window proportions to maintain façade consistency. Floor plan views explain opening direction, clear width, and integration with wall thickness for proper spatial coordination. All dimensions are clearly marked to support correct fabrication and on-site installation.

The drawing also explains internal frame connections, hardware positioning, and junctions between window panels and the surrounding wall structure. Sectional detailing highlights fixing methods, seal placement, and level alignment between sill, jamb, and head. Measurement references guide accurate spacing, height control, and panel symmetry. This window panel design drawing supports architects, façade designers, and builders in understanding construction logic, fixing accuracy, and dimensional coordination directly from the AutoCAD drawing.
