Reinforcement details in structural blocks 2d view autocad file


Description

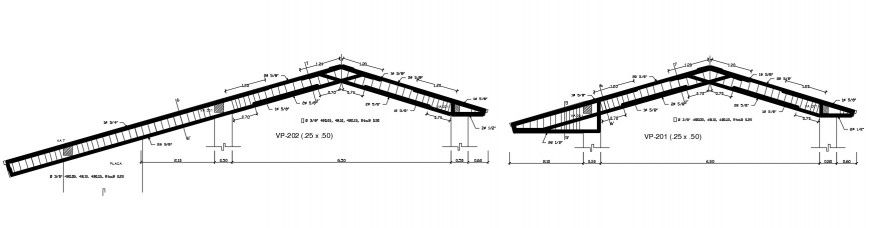

Reinforcement details in structural blocks 2d view autocad file that shows reinforcement details in tension and compression zone alng with concrete masonry detaisl along with dimension details. Main and distribution hook up and bent up bars dteials and the structure is a reinforced concrete cement (RCC) structure.




File Type: DWG File ID: 84290
