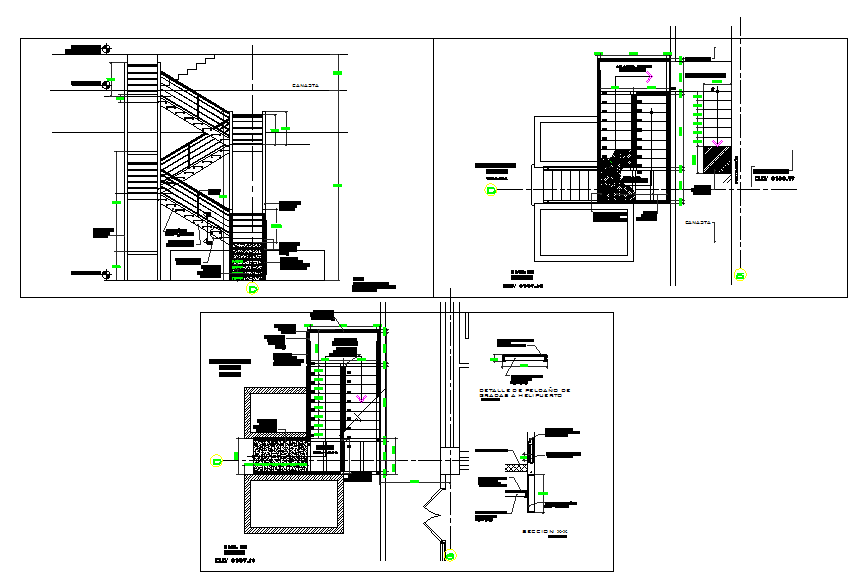

Stair Detail Drawing With Section Elevation And Step Dimensions

This stair detail drawing is prepared in AutoCAD format and provides complete construction-level information for stair planning between two floors. The drawing includes detailed stair layout plans showing step arrangement, landing position, and circulation alignment within the building. Section drawings clearly explain riser height, tread depth, slab thickness, and stair slope to ensure safe and comfortable movement. Elevation views illustrate the vertical relationship between floors, handrail positioning, and stair support structure.

The stair detail design also explains structural support conditions, step continuity, and clearance requirements for building compliance. Measurement details are provided for stair width, riser count, landing length, and handrail height to assist in precise construction work. This stair AutoCAD drawing is suitable for residential, commercial, and institutional building projects where accurate stair detailing is required. The content focuses strictly on drawing-related technical information and stair construction accuracy without any extra non-drawing content.
