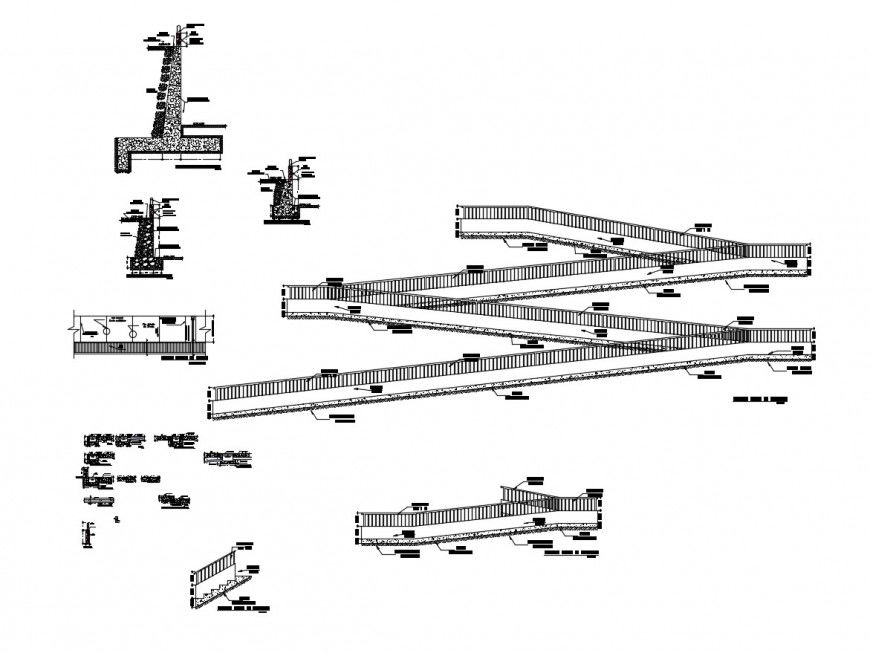

Ramp and pedestal walk of garden section and constructive structure details dwg file


Description

Ramp and pedestal walk of garden section and constructive structure details Here you can find free auto-cad file with pavements and sidewalks details with staircase and ramp of the cultural plaza, link platform to the malison and central bank of the cultural plaza provides. Detail of the floor of the sale point, module with ramp and stairs with cut-lifting of the planter bench, cut-lifting of the planter bench, typical boardwalk of the seawall and much more of garden details.




File Type: DWG File ID: 84533

Uploaded by:


Eiz Luna
New-Zealand
