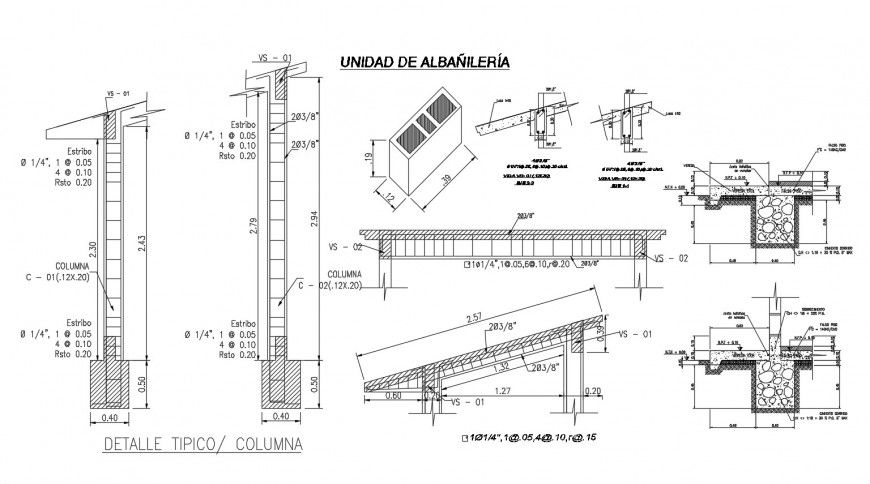

Typical column of toilet section and construction details dwg file


Description

Typical column of toilet section and construction details that includes a detailed view of typical transverse reinforcement details with typical splice location for column, details of beam reinforcement passing through column with column junction details with dimensions details and much more of column details.




File Type: DWG File ID: 84601

Uploaded by:


Eiz Luna
New-Zealand
