Pergola Structure Detail Drawing with 20x20 Concrete Beam Design

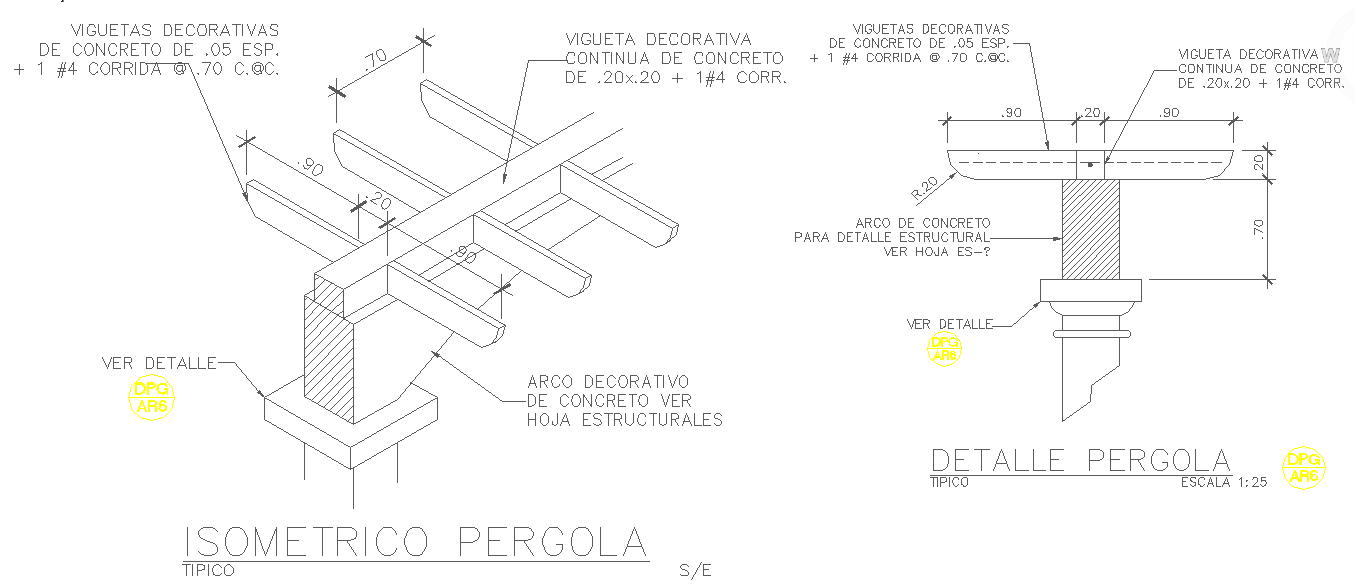

This AutoCAD drawing presents a detailed pergola structure design showing precise construction and structural elements used in reinforced concrete pergola systems. The drawing includes decorative concrete vigetas with 5 cm thickness, spaced at 0.70 m c to c, supported by a continuous 20x20 cm concrete beam with #4 reinforcement bars. Clear isometric and sectional views illustrate beam alignment, spacing dimensions of 0.90 m and 0.20 m, and the integration of decorative concrete arcs connected to the main vertical support. All measurements are clearly marked, making the file highly suitable for professional execution and site reference.

The structure detail file is ideal for architects, civil engineers, builders, and design professionals who require accurate pergola construction drawings for residential or commercial projects. This DWG file supports AutoCAD and is compatible with other design software such as Revit, 3D Max, and SketchUp for coordination and visualization.
