Roof Eaves Construction Detail with Drip Edge AutoCAD DWG file

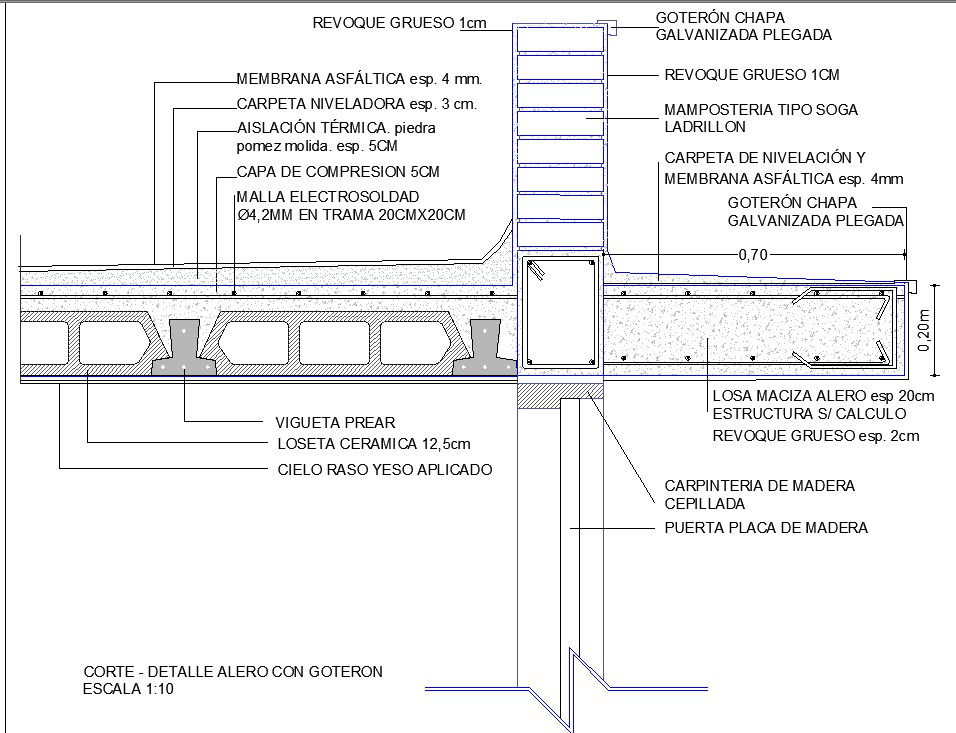

This Roof Eaves Construction Detail AutoCAD DWG file provides a complete sectional drawing of the roof slab connection with the drip edge (goterón), waterproofing system, insulation layers, and masonry wall junction. The detail includes asphalt membrane, leveling screed, thermal insulation, compression layer, welded mesh reinforcement, ceramic slab system, concrete beam, and solid slab eaves structure. The drawing clearly shows material specifications, thickness dimensions, structural calculation notes, plaster finish, galvanized sheet drip edge, and roof-water drainage solution. It is highly useful for preventing water seepage, improving durability, and ensuring proper roof edge finishing.
