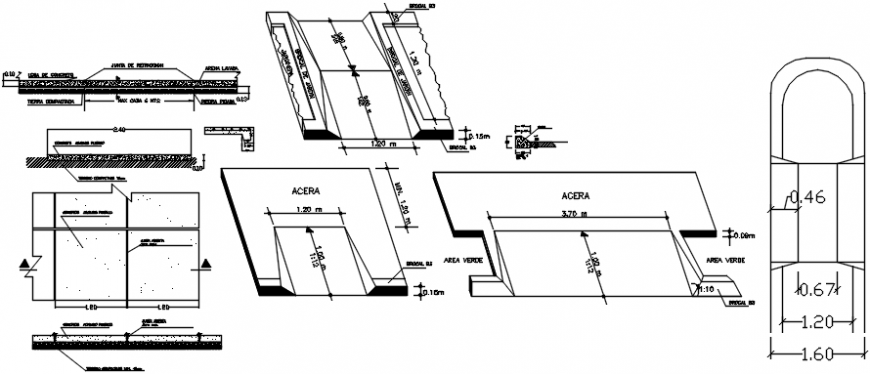

Ramp section and structure details of apartment building dwg file


Description

Ramp section and structure details of apartment building that includes a detailed view of vehicular blocking plant and colonial type adoquin including vehicular adoquin, gasket detail with grade section, adoquined plant and pedestrian grade details and  general implementation details, single concrete and wall a build details provided with vehicular buffing grid detail, landscaping details, road details with side walk details with dimensions details, technical specifications and much more of garden details with free download.




File Type: DWG File ID: 85996

Uploaded by:


Eiz Luna
New-Zealand
