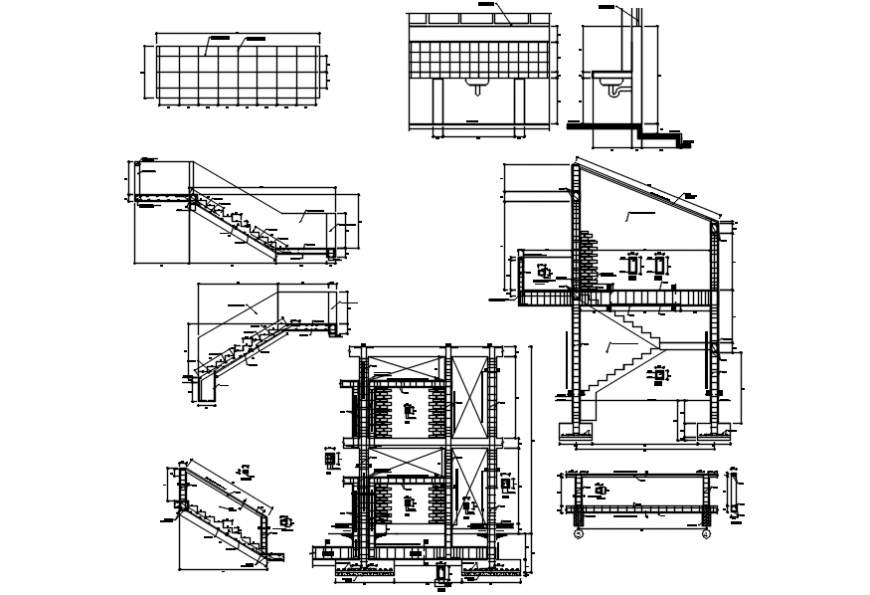

Education building constructive section and staircase details dwg file


Description

Education building constructive section and staircase details that includes a detailed view of free auto-cad file including flooring view with wall construction with memory of materials, footings details, column view and beam construction, covers closure type with soil buried wall closure and interior partition and granite veneer of the country with steel supports, halfeneisen type with Brick partition with plaster plastering and Concrete wall  and much more of education building details.




File Type: DWG File ID: 87892

Uploaded by:


Eiz Luna
New-Zealand
